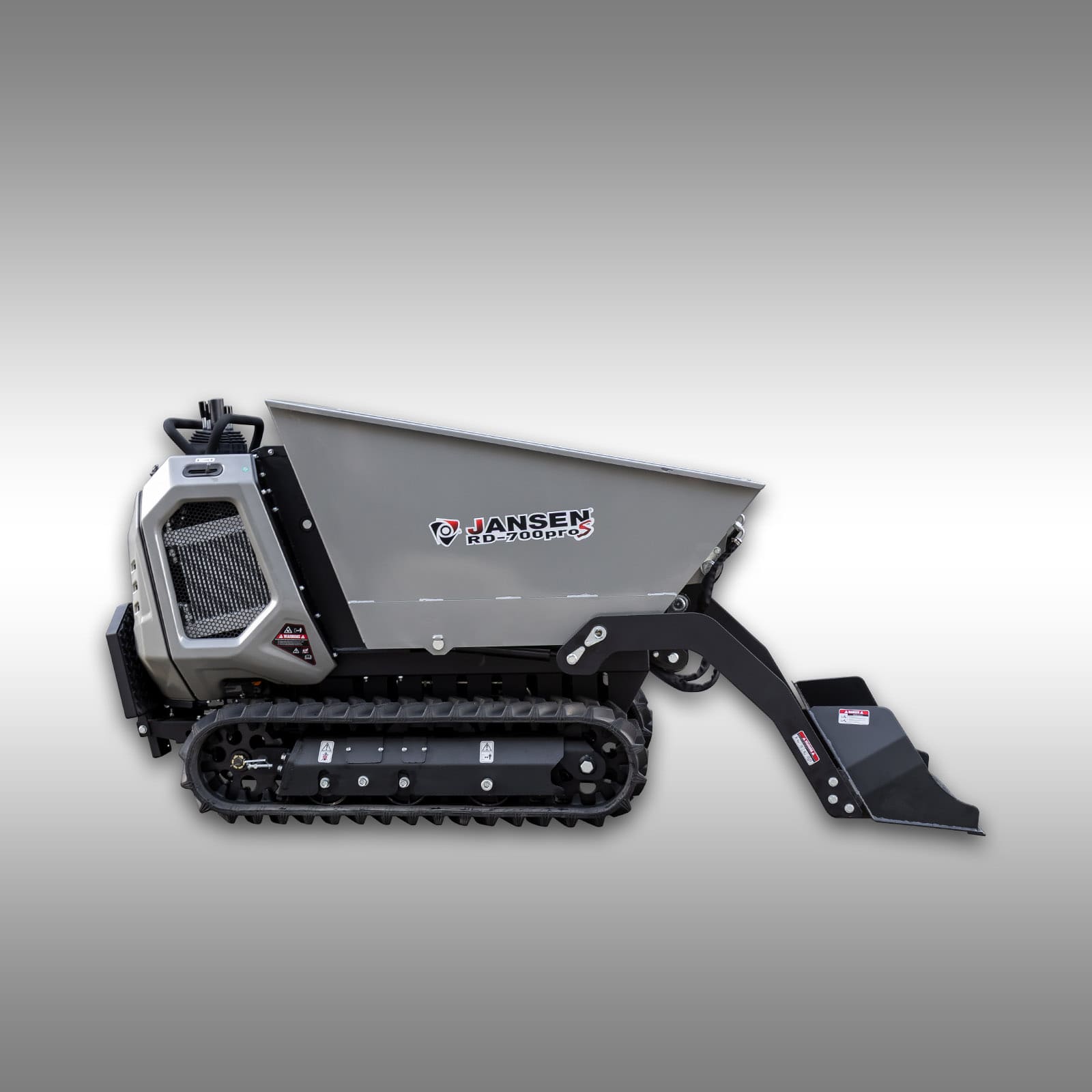

JANSEN® RD-700proS Tracked Dumper – 800 kg Payload, High-Tip Function & Self-Loading Shovel

The JANSEN® RD-700proS combines three particularly practical functions in one powerful transport machine: a hydrostatic drive, a hydraulic high-tip function and a hydraulically operated self-loading shovel.

With a maximum payload of up to 800 kg on level ground, a powerful 15 HP Loncin G420FD petrol engine and an all-terrain tracked undercarriage, the RD-700proS is ideally suited for a wide range of transport tasks on construction sites, around properties, in gardening and landscaping, as well as in agriculture and forestry.

Its compact overall width of only approx. 74 cm is a particular advantage: despite its high transport capacity, the tracked dumper can also be used in narrow access areas and confined working spaces.

Quick Overview – Key Advantages

• Hydrostatic tracked dumper
• Maximum payload on level ground: up to 800 kg
• Hydraulic high-tip function
• Tipping height up to approx. 142 cm
• Tipping angle over 90°
• Hydraulic self-loading shovel
• Load, transport and unload material with one machine
• 15 HP Loncin G420FD 4-stroke petrol engine
• Electric and recoil starter
• Hydrostatic drive with continuously variable speed control
• All-terrain tracked undercarriage
• Up to 800 kg payload on level ground
• Only approx. 74 cm overall width
• Reinforced skip with 3 mm wall thickness
• Straight skip design for reliable unloading
• Folding operator platform

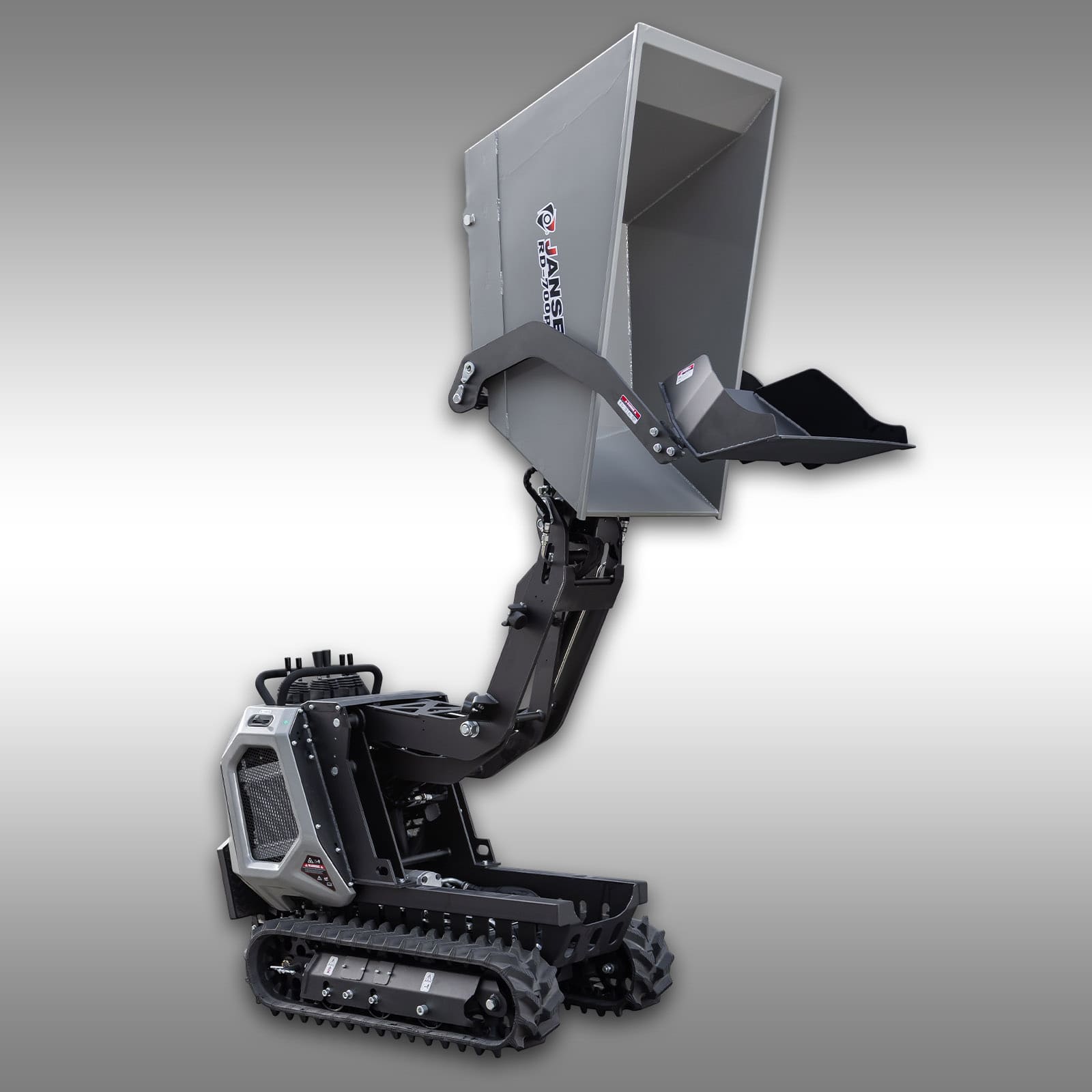

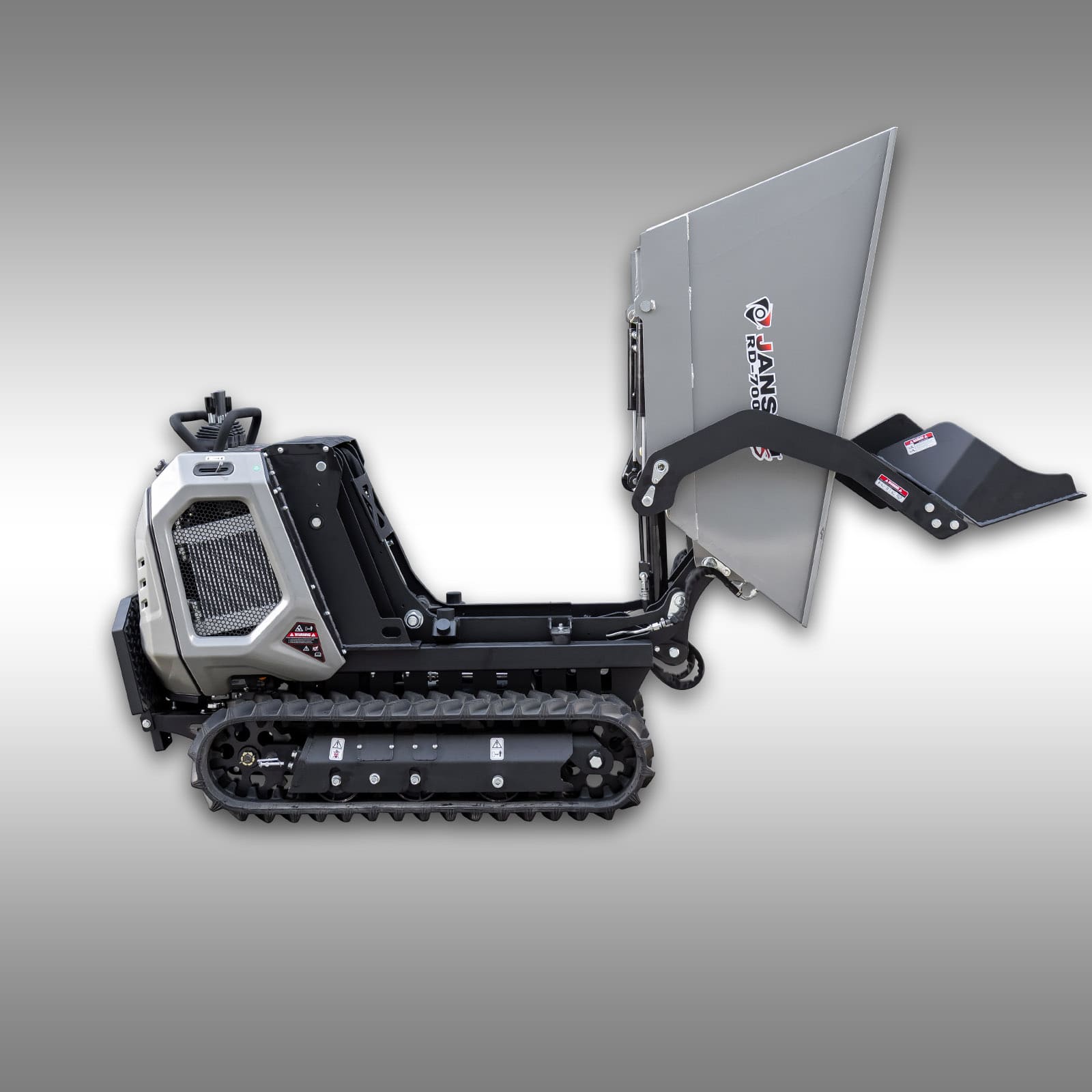

High-Tip Function – Tip Directly into Trailers or Containers

One of the key features of the JANSEN® RD-700proS is its hydraulic high-tip function. Unlike a conventional tracked dumper, the skip can not only be tipped but can first be hydraulically raised.

This allows the skip to reach a tipping height of up to approx. 142 cm. The transported material can therefore be tipped directly into suitable trailers, containers or other elevated unloading areas.

The large tipping angle of over 90° also helps ensure that the skip is emptied as completely as possible – particularly when transporting soil, sand or other suitable bulk materials.

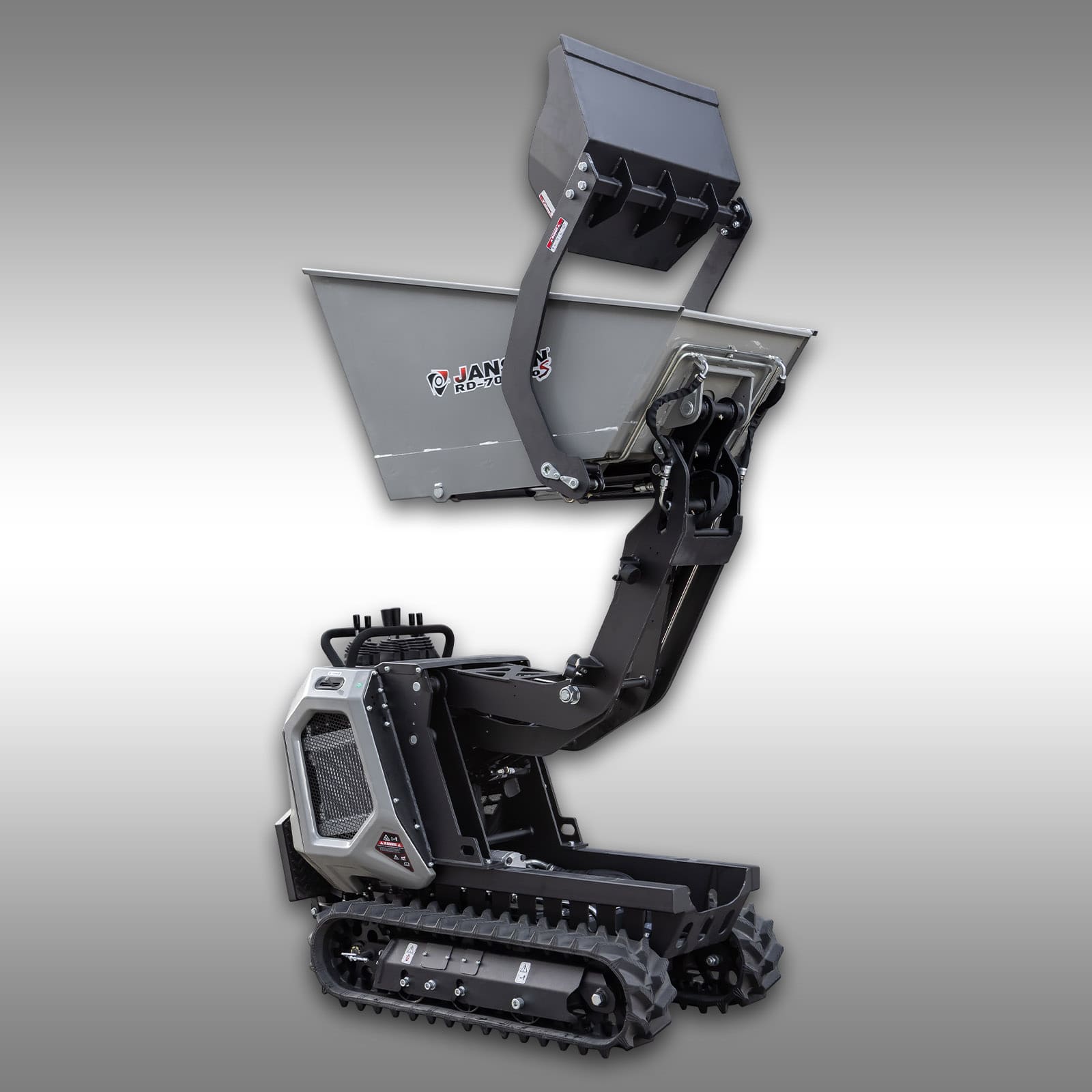

Hydraulic Self-Loading Shovel

The second major advantage of the RD-700proS is its integrated hydraulic self-loading shovel.

This allows suitable loose materials to be picked up directly and then loaded into the skip. As a result, many transport tasks can be carried out without having to load the material entirely by hand or with a separate machine beforehand.

The self-loading shovel is suitable, for example, for picking up:

• Soil
• Sand
• Gravel
• Smaller stones
• Suitable bulk materials
• Other loose materials

Loading, transporting and hydraulically high-tipping – the RD-700proS combines all these work steps in one compact machine.

Hydrostatic Drive – Precise and Continuously Variable

The JANSEN® RD-700proS features a hydrostatic drive. This allows the speed to be precisely and continuously adjusted to suit the respective working situation.

Unlike a conventional manual transmission, there is no need for repeated gear changes. The driving movement can be controlled with particular precision – an important advantage when manoeuvring, loading and unloading, as well as when working in confined areas.

• Continuously variable speed control
• Precise handling
• Good control even at low speeds
• Starting under load possible
• Ideal for frequent changes of direction and speed

Up to 800 kg Payload

On level ground, the JANSEN® RD-700proS can carry loads of up to 800 kg.

On slopes, the permissible payload is reduced accordingly:

• Level ground: up to 800 kg
• At approx. 17% gradient: up to 450 kg
• At approx. 30% gradient: up to 375 kg

This provides the tracked dumper with sufficient transport capacity for numerous jobs on construction sites, around properties and in gardening and landscaping.

All-Terrain Tracked Undercarriage

The robust tracked undercarriage provides a large contact area and good traction on various surfaces.

This allows the RD-700proS to be used in areas where wheeled transport machines may reach their limits more quickly.

Typical surfaces include:

• Soft ground
• Mud
• Sand
• Uneven terrain
• Construction sites
• Inclines and declines within the permitted operating limits

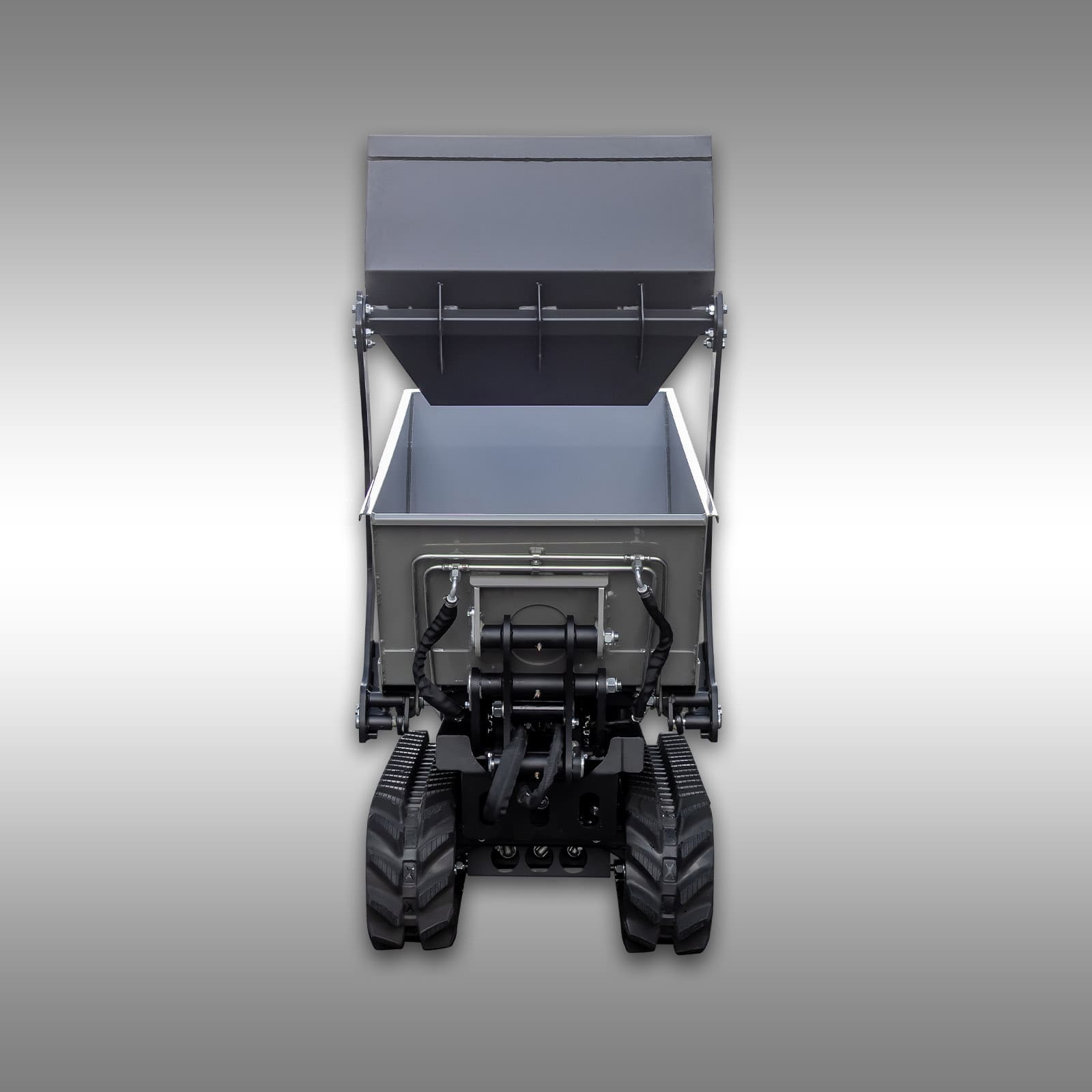

Only Approx. 74 cm Wide – Ideal for Narrow Access Areas

Despite its high transport capacity, the JANSEN® RD-700proS has an extremely compact design.

The overall width is only approx. 740 mm. This allows the machine to pass through narrow access routes, gates and spaces between buildings.

This compact machine width is a major advantage particularly when working in gardens, around properties or on renovation and construction projects in confined spaces.

Robust Skip with 3 mm Wall Thickness

The transport skip of the RD-700proS features a robust construction with a wall thickness of 3 mm.

In addition, particular attention has been paid to creating a straight skip design. This facilitates unloading and reduces areas in which bulk material could become lodged during tipping.

The loading skip measures approx. 1,310 x 660 mm.

15 HP Loncin G420FD Petrol Engine

A powerful 15 HP Loncin G420FD 4-stroke petrol engine provides the necessary propulsion and powers the hydraulic system.

The engine can be conveniently started using the electric starter. A conventional recoil starter is also provided.

The fuel tank holds approx. 6.6 litres of regular petrol.

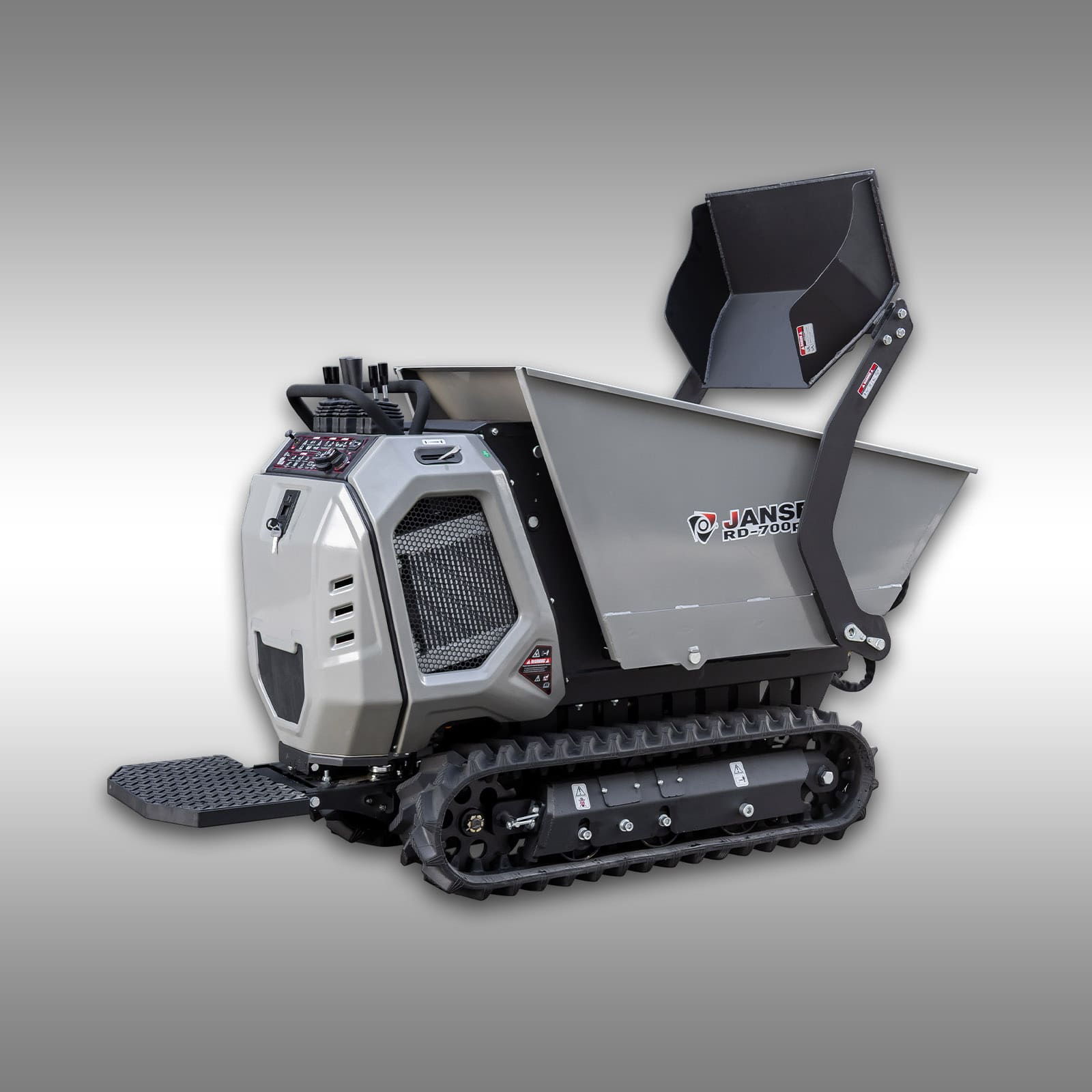

Folding Operator Platform

The RD-700proS features a sturdy operator platform with a folding footboard.

For longer transport distances, the operator can ride on the platform. When minimum space is required, the footboard can be folded up accordingly.

Technical Specifications

• Model: JANSEN® RD-700proS
• Machine type: Tracked dumper with high-tip function and self-loading shovel
• Payload on level ground: max. 800 kg
• Payload at approx. 17% gradient: max. 450 kg
• Payload at approx. 30% gradient: max. 375 kg
• Drive: hydrostatic
• Skip operation: hydraulic
• High-tip function: hydraulic
• Self-loading shovel: hydraulic
• Tipping height: up to approx. 142 cm
• Tipping angle: over 90°
• Engine: Loncin G420FD, 4-stroke petrol engine
• Engine power: 15 HP
• Starter: electric and recoil starter
• Fuel: regular petrol
• Fuel tank capacity: approx. 6.6 litres
• Speed: max. approx. 4.4 km/h
• Dry weight: approx. 575 kg
• Ground clearance: approx. 100 mm
• Dimensions assembled: approx. 2650 x 740 x 1130 mm (L x W x H)
• Overall width: approx. 740 mm
• Loading skip: approx. 1310 x 660 mm
• Skip wall thickness: approx. 3 mm
• Shovel: approx. 35 x 66 x 20 cm
• Height of front edge of skip: approx. 890 mm
• Packaging dimensions: approx. 1830 x 770 x 1300 mm (L x W x H)
• Weight including packaging: approx. 630 kg

Typical Applications

The JANSEN® RD-700proS is suitable for a wide range of transport and loading tasks.

• Construction sites
• Gardening and landscaping
• Property maintenance
• Agriculture
• Forestry
• Yard work
• Transport tasks in difficult-to-access areas

Thanks to the combination of self-loading shovel, high-tip function and tracked undercarriage, the machine is particularly useful wherever material needs not only to be transported, but also picked up independently and subsequently unloaded at a greater height.

Delivery & Commissioning

The JANSEN® RD-700proS is delivered well packaged in a sturdy wooden crate.

Allow approx. 3 hours for commissioning. Due to the weight of the machine, we recommend carrying out the work with a second person.

For initial commissioning, you will need:

• Approx. 1 litre of engine oil
• Recommended engine oil: 10W40 or 15W40
• Regular / unleaded petrol
• Approx. 18 litres of hydraulic oil
• Recommended hydraulic oil: HLP46

A German operating manual and exploded-view drawings are included in the scope of delivery. If you have any questions regarding commissioning or operation, we will be happy to assist you by telephone.

FAQ – Frequently Asked Questions about the JANSEN® RD-700proS

What is the maximum payload?

Answer: On level ground, the maximum payload is 800 kg. On slopes, the permissible load is reduced accordingly.

What does high-tip mean?

Answer: The skip can be hydraulically raised and then tipped. This allows it to reach a tipping height of up to approx. 142 cm and unload material directly into suitable trailers or containers, for example.

How does the self-loading shovel work?

Answer: The hydraulically operated shovel picks up suitable loose material and then loads it directly into the tracked dumper's skip.

Can the shovel pick up soil and gravel?

Answer: Yes. The self-loading shovel is suitable for various suitable loose materials such as soil, sand, gravel or comparable bulk materials.

What is the advantage of the hydrostatic drive?

Answer: The hydrostatic drive enables precise, continuously variable control of the driving speed. This is particularly advantageous when manoeuvring and during loading and unloading.

How wide is the JANSEN® RD-700proS?

Answer: The overall width is only approx. 74 cm. This allows the tracked dumper to be used even in comparatively narrow areas.

What is the maximum tipping height?

Answer: The maximum tipping height is approx. 142 cm.

What is the tipping angle?

Answer: The skip reaches a tipping angle of over 90°.

Which engine is fitted?

Answer: The RD-700proS is powered by a 15 HP Loncin G420FD 4-stroke petrol engine.

Does the engine have an electric starter?

Answer: Yes. The engine features both an electric starter and a recoil starter.

How much does the tracked dumper weigh?

Answer: The dry weight is approx. 575 kg. The weight including packaging is approx. 630 kg.

Which hydraulic oil is required?

Answer: Approx. 18 litres of HLP46 hydraulic oil are required for commissioning.

How much time should be allowed for commissioning?

Answer: Allow approx. 3 hours for commissioning. Due to the weight of the machine, a second person is recommended.

Service & Spare Parts Supply

For our JANSEN® machines, we offer reliable spare parts supply and competent support.

If you have any questions or problems, knowledgeable contacts are personally available to assist you – without an anonymous call centre.

Many of our machines can be viewed in our showroom by prior appointment.

Conclusion – Tracked Dumper with High-Tip Function, Self-Loader and Hydrostatic Drive

The JANSEN® RD-700proS is much more than a conventional tracked dumper. The combination of a hydraulic self-loading shovel, hydraulic high-tip function and hydrostatic drive enables an exceptionally versatile workflow.

Pick up material, transport up to 800 kg on level ground and then hydraulically unload it at a height of up to approx. 142 cm – numerous work steps can be completed with just one machine.

The powerful 15 HP Loncin engine, all-terrain tracked undercarriage and compact width of only approx. 74 cm make the RD-700proS a versatile transport solution for construction sites, properties, gardening, agriculture and forestry.
