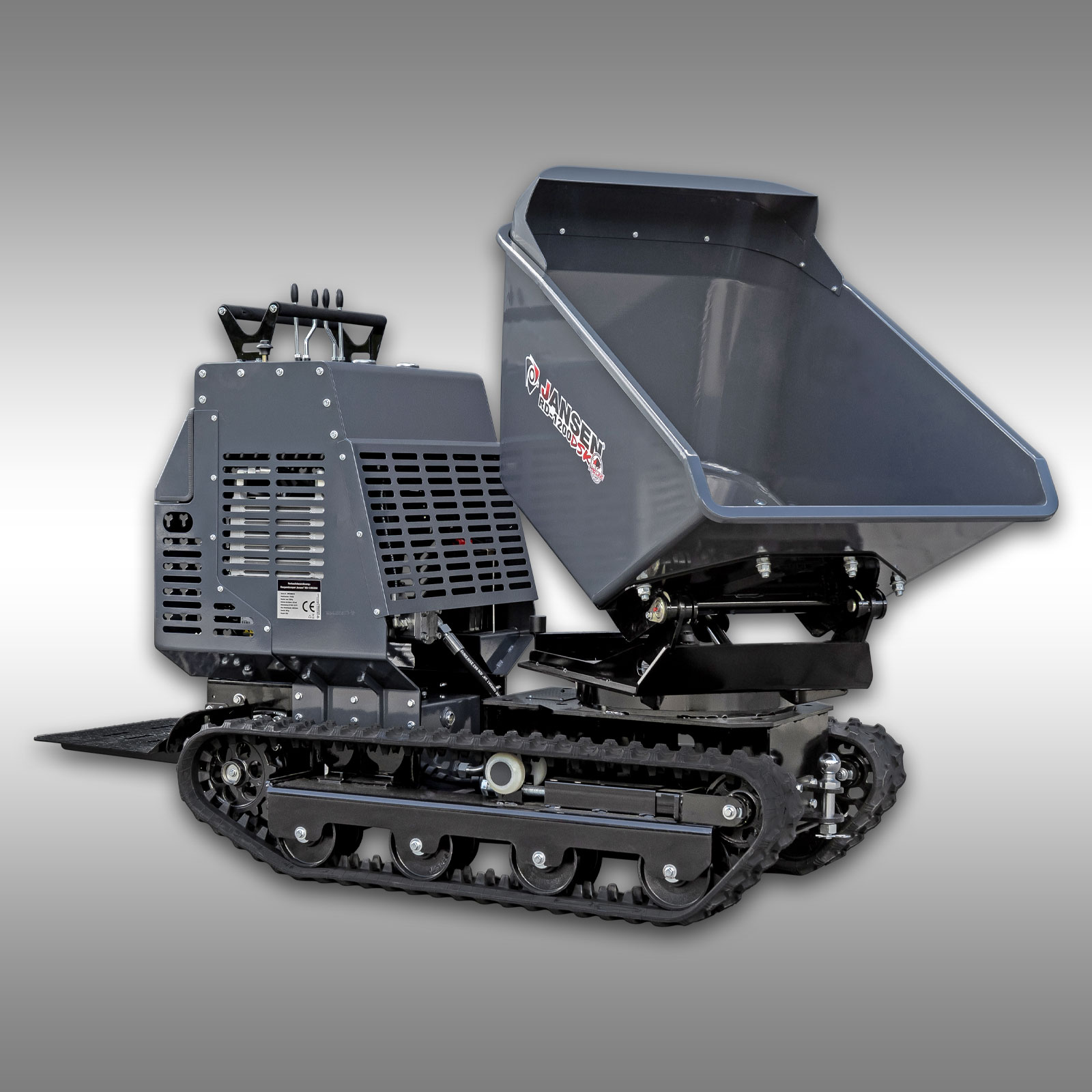

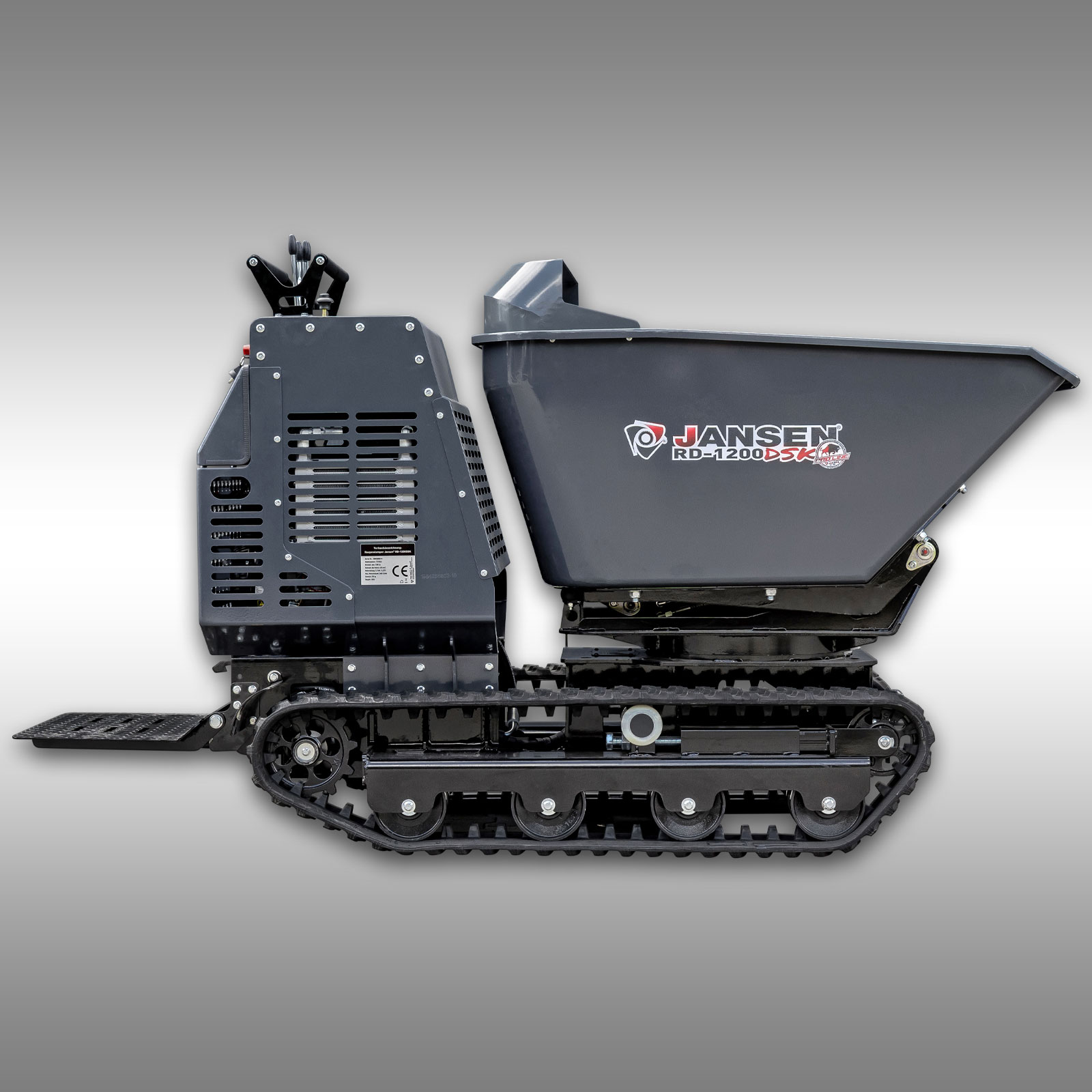

JANSEN® PROLINE RD-1200DSK – Tracked Three-Way Dump Truck with 1,200 kg Payload

The JANSEN® RD-1200DSK from the new PROLINE series is a high-performance tracked dumper designed for professional use in gardening and landscaping, on construction sites, in agriculture and forestry, and on challenging terrain.

With a high payload of up to 1,200 kg, a robust crawler undercarriage, and a hydraulic rotating-tipping function, the RD-1200DSK transports even heavy loads safely and efficiently—even on uneven ground, narrow paths, or on inclines of up to 25° or 45%.

The combination of high load-carrying capacity, compact design, and a flexibly rotating dump body makes the RD-1200DSK a versatile transport machine for a wide range of applications.

The new JANSEN® PROLINE

With the JANSEN® PROLINE, we’re taking our proven machines to a new level: more robust, more powerful, and designed for demanding applications.

The PROLINE series is aimed in particular at users who regularly rely on high-performance and reliable equipment—for example, in forestry, municipal services, or gardening and landscaping.

• Reinforced and exceptionally robust construction
• High power reserves for demanding tasks
• Design engineered for intensive use
• Service-friendly design
• For demanding commercial and professional applications

PROLINE stands for high performance, robust technology, and reliable work machines.

Quick Overview – Key Benefits

• Hydraulic Track-Mounted Three-Way Dump Truck
• Effective horizontal load capacity up to 1,200 kg
• Hydraulic swing-and-dump function
• Body rotates 180°
• Tilt angle up to 90°
• 13.5 PS Briggs & Stratton gasoline engine
• All-terrain crawler track
• Gradeability up to 25° / 45%
• Robust steel construction
• 0.4 m³ bucket capacity
• Compact design with high transport capacity
• For construction sites, forestry, agriculture, and gardening and landscaping

1,200 kg payload for heavy-duty transport

The JANSEN® PROLINE RD-1200DSK offers an effective horizontal load capacity of up to 1,200 kg. This allows even large quantities of material to be transported efficiently across the terrain.

Whether it’s soil, gravel, sand, rocks, wood, or other suitable bulk materials—the tracked dumper reduces the need for manual transport and enables a significantly more efficient flow of materials on construction sites, properties, and work areas.

The tipping bucket has a volume of approximately 0.4 m³ and measures about 1,400 × 800 × 600 mm.

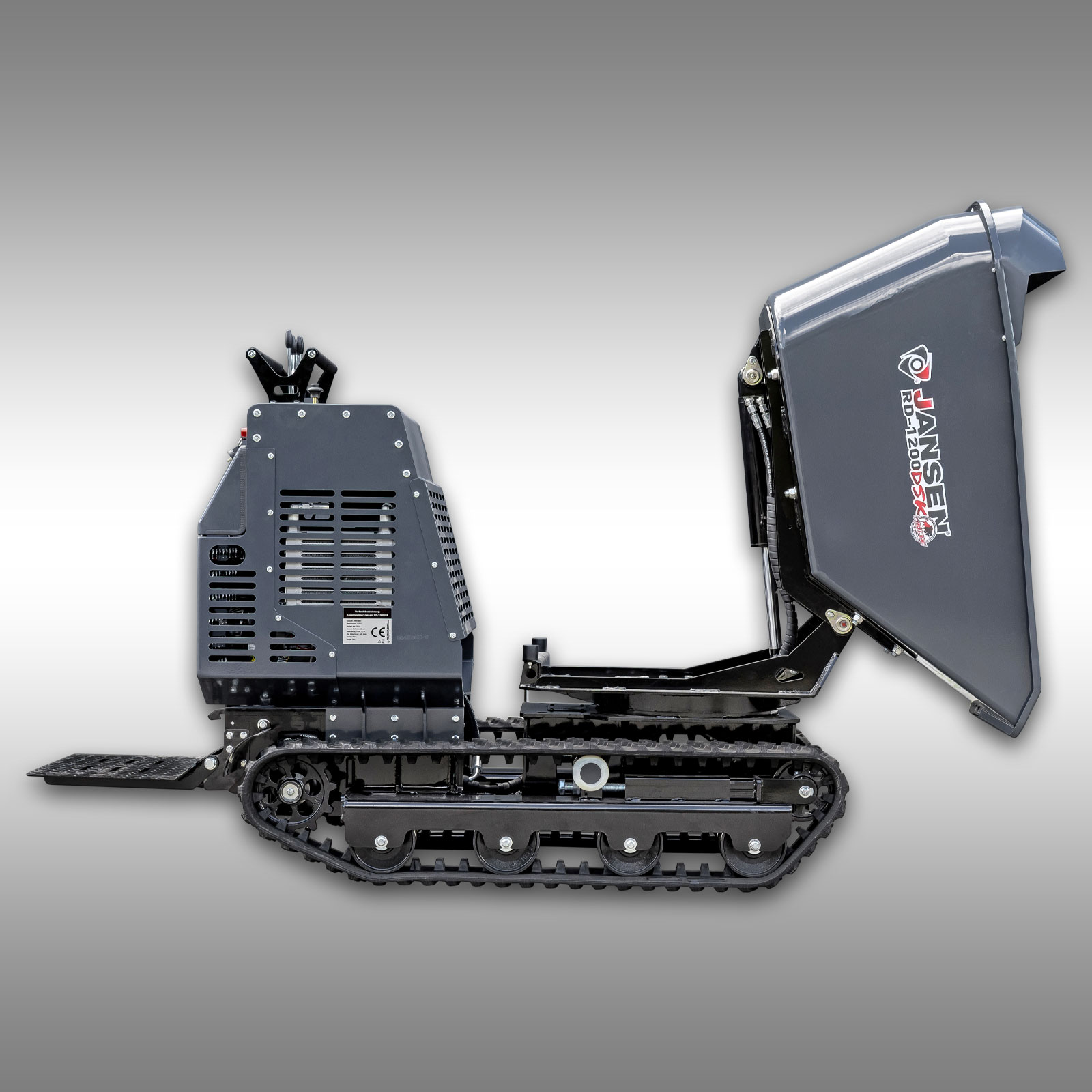

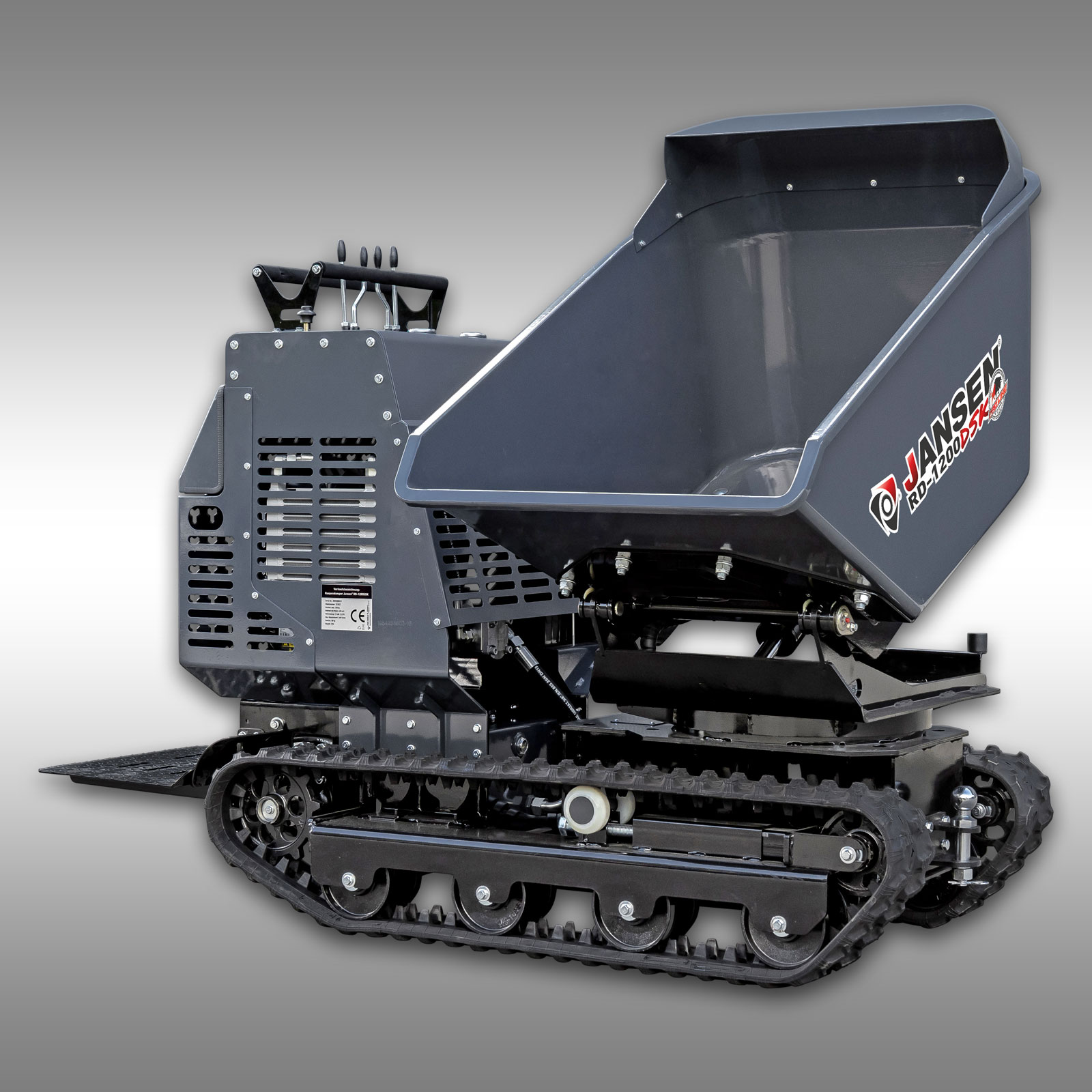

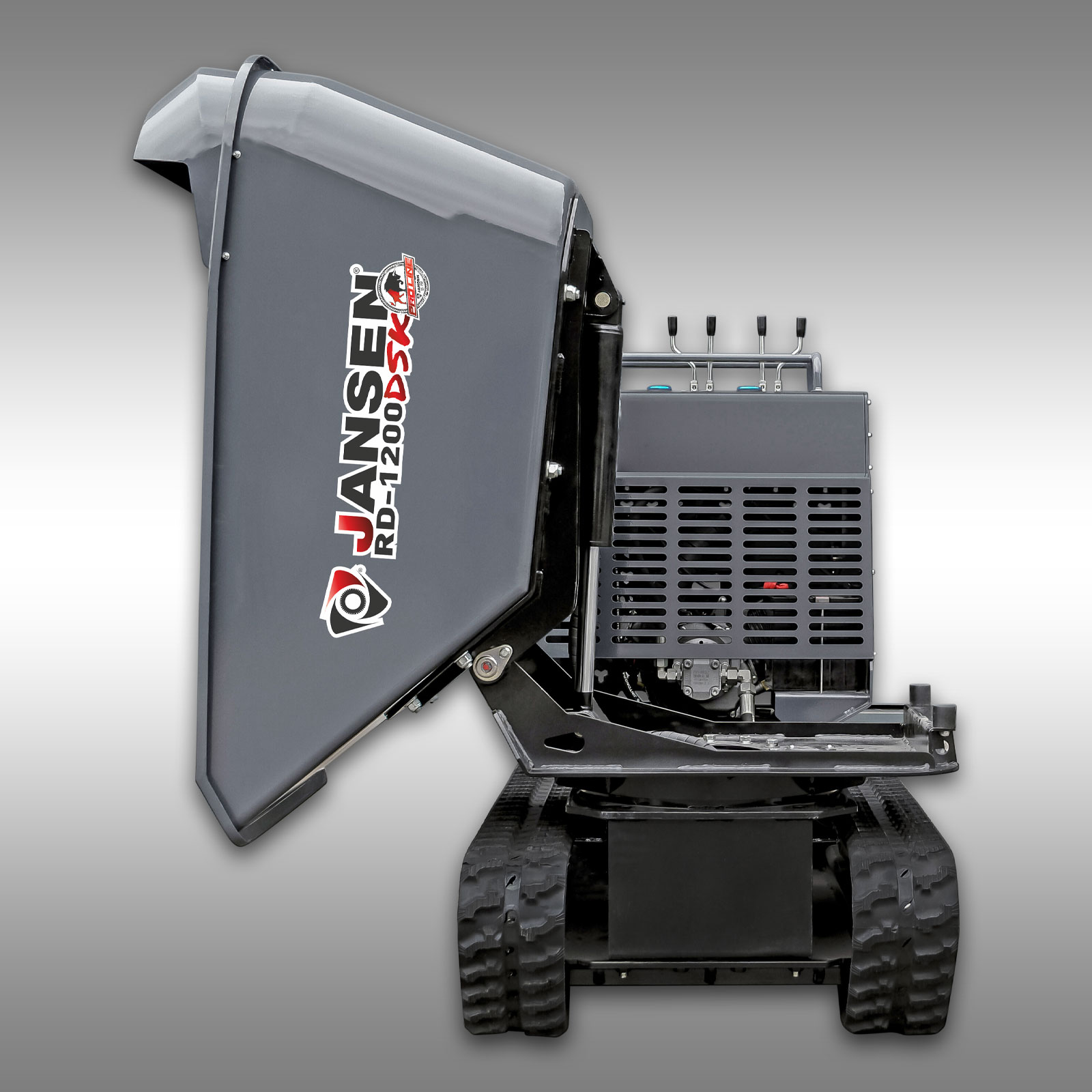

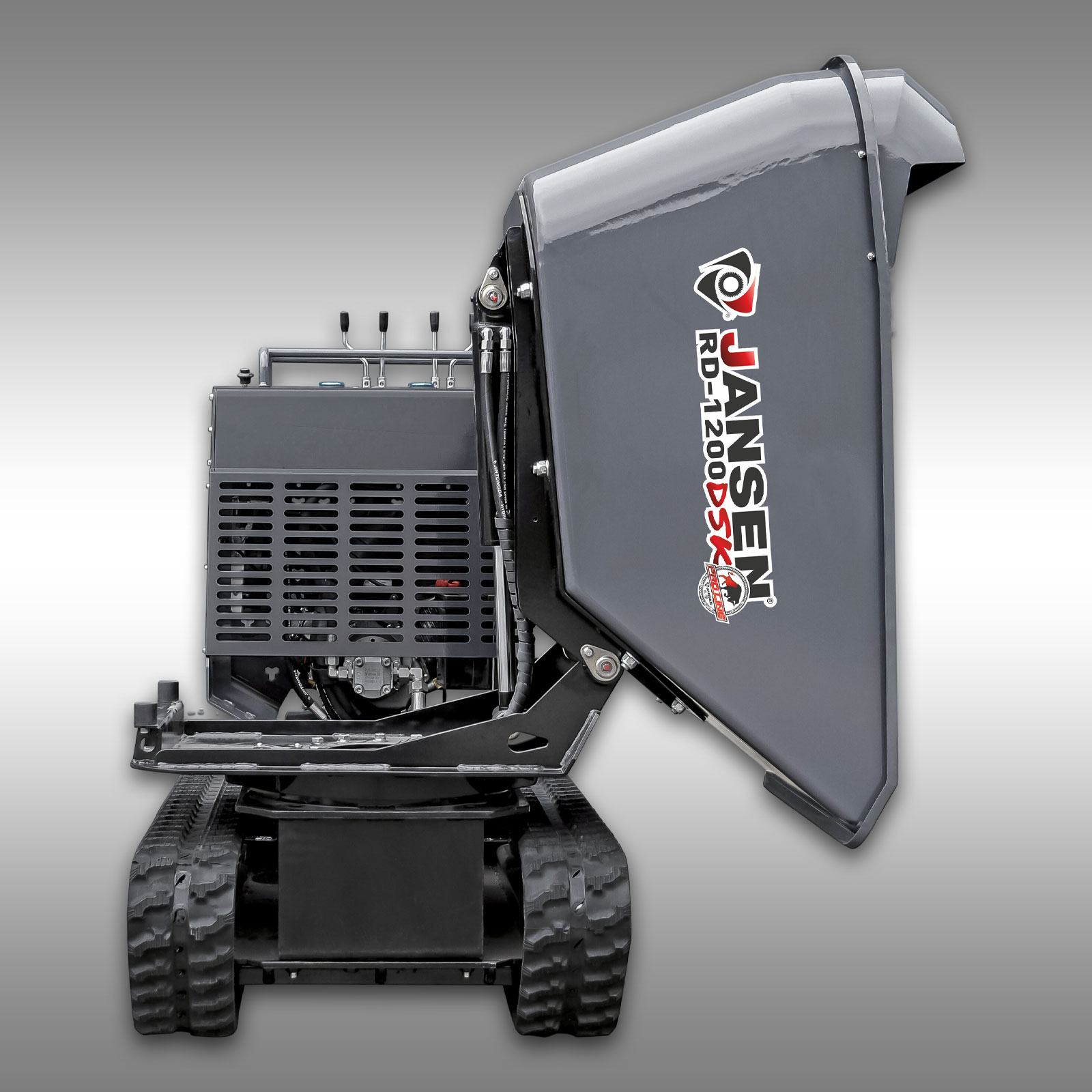

Hydraulic swing-and-tilt function

A special feature of the RD-1200DSK is the hydraulic rotating and tipping bucket. This allows for particularly flexible unloading of the transported material.

Depending on the work situation, the bucket can be emptied:

• forward
• to the left
• or to the right

be emptied.

With a rotation angle of 180°, the body can be flexibly aligned. The tilt angle of up to 90° ensures that the body is emptied as completely as possible—especially for bulk materials or damp material.

This design offers a significant practical advantage, especially on tight construction sites or in areas where the vehicle does not need to be repositioned for every unloading operation.

13.5 PS Briggs & Stratton engine

The JANSEN® RD-1200DSK is powered by a high-performance Briggs & Stratton gasoline engine with 13.5 PS.

The engine reaches a speed of up to 3,600 rpm and provides the necessary power for the drive train and hydraulic functions.

The fuel used is unleaded gasoline.

All-terrain crawler track system

The robust crawler track system is one of the RD-1200DSK’s key strengths. The wide contact area of the track belts ensures good traction and stable handling on difficult terrain.

This makes the tracked dumper particularly suitable for work on:

• uneven terrain
• soft ground
• Mud
• Sand
• Construction sites
• Forest and logging roads
• Sloped terrain

The maximum gradeability is up to 25° or approx. 45%.

Compact dimensions despite high payload

Despite its high load capacity, the RD-1200DSK remains comparatively compact. Its dimensions when assembled are approximately 2,400 × 900 × 1,400 mm.

With a total width of only approx. 900 mm, the tracked dumper can also be used on narrower paths and in confined work areas.

This combination of high transport capacity and compact design is a significant advantage, especially in gardening and landscaping or on smaller construction sites.

Robust Construction for Demanding Tasks

The JANSEN® PROLINE RD-1200DSK features a solid steel construction and has a curb weight of approximately 705 kg.

The robust construction provides a stable foundation for the high payload, the tracked undercarriage, and the hydraulic swing-and-tilt function.

The RD-1200DSK is therefore designed for users who regularly perform demanding transport tasks on difficult terrain.

Technical Specifications

• Model: JANSEN® PROLINE RD-1200DSK
• Equipment Type: Tracked Dump Truck / Tracked Three-Way Tipper
• Dimensions (Assembled): approx. 2400 × 900 × 1400 mm
• Weight: approx. 705 kg
• Effective horizontal load capacity: max. 1,200 kg
• Tipping body dimensions: approx. 1,400 × 800 × 600 mm
• Tipping body capacity: approx. 0.4 m³
• Tipping angle of the bed: 180°
• Tipping angle: 90°
• Engine: Briggs & Stratton
• Engine power: 13.5 PS
• Engine speed: 3,600 rpm
• Fuel: Gasoline, unleaded
• Fuel tank capacity: approx. 6.5 liters
• Gradeability: up to 25° / 45%
• Hydraulic oil tank: approx. 16 liters
• Packaging dimensions: approx. 200 x 100 x 160 cm (L x W x H)
• Weight with packaging: approx. 740 kg

Ideal for a wide range of applications

The JANSEN® RD-1200DSK is suitable for a wide variety of transport tasks and can be used wherever heavy materials need to be moved over difficult or narrow terrain.

Typical applications include:

• Construction sites
• Gardening and landscaping
• Forestry
• Agriculture
• Municipal work
• Property and yard work

Suitable materials for transport include, for example:

• Soil
• Sand
• Gravel
• Stones
• Wood
• Bulk materials
• Building materials
• Other suitable materials for transport

Delivery & Setup

The unit is delivered well-packaged on a wooden pallet.

You should allow approximately 30 minutes for commissioning.

IMPORTANT: The hydraulic oil level must be checked before initial startup and topped off if necessary. We recommend hydraulic oil with the HLP-46 classification.

If you have any questions regarding startup or operation, we are of course happy to assist you by phone.

FAQ – Frequently Asked Questions About the JANSEN® RD-1200DSK

What is the maximum payload?

Answer: The JANSEN® RD-1200DSK has an effective horizontal load capacity of up to 1,200 kg.

Can the bucket be tipped to the side?

Answer: Yes. The hydraulic swing-and-tilt function allows for unloading forward as well as to the left or right. The bucket can be rotated by up to 180°.

What is the tilt angle?

Answer: The dump bed reaches a tilt angle of up to 90°.

How big is the dump body?

Answer: The dump body measures approx. 1,400 × 800 × 600 mm and has a volume of approx. 0.4 m³.

What engine is installed?

Answer: The tracked dumper is equipped with a 13.5 PS Briggs & Stratton gasoline engine.

What type of terrain is the RD-1200DSK suitable for?

Answer: The track-type undercarriage is particularly suitable for uneven, soft, muddy, or sandy surfaces. The maximum gradeability is up to 25° or 45%.

How wide is the tracked dumper?

Answer: The overall width of the assembled machine is approximately 900 mm.

How heavy is the RD-1200DSK?

Answer: The machine weight is approximately 705 kg. The weight including packaging is approximately 740 kg.

What operating fluids are required for startup?

Answer: The engine requires approximately 1 liter of 10W40 or 15W40 engine oil as well as unleaded gasoline. Additionally, the hydraulic oil level must be checked before initial operation and topped off with HLP-46 hydraulic oil if necessary.

How long does commissioning take?

Answer: Allow approximately 30 minutes for commissioning.

Conclusion – High-performance tracked three-way tipper with a 1,200 kg payload

The JANSEN® PROLINE RD-1200DSK combines a high payload of up to 1,200 kg with a versatile hydraulic swivel-tilt body and an all-terrain crawler undercarriage.

With a 180° rotation angle, a 90° tipping angle, a 13.5 PS Briggs & Stratton engine, and a maximum gradeability of 25°, this tracked dumper is ideal for demanding transport tasks on construction sites, in gardening and landscaping, as well as in agriculture and forestry.

Its compact width of approximately 900 mm also makes it easier to use on narrow paths and in confined spaces. As a result, the RD-1200DSK combines high transport capacity with versatile off-road capability and flexible unloading options.
