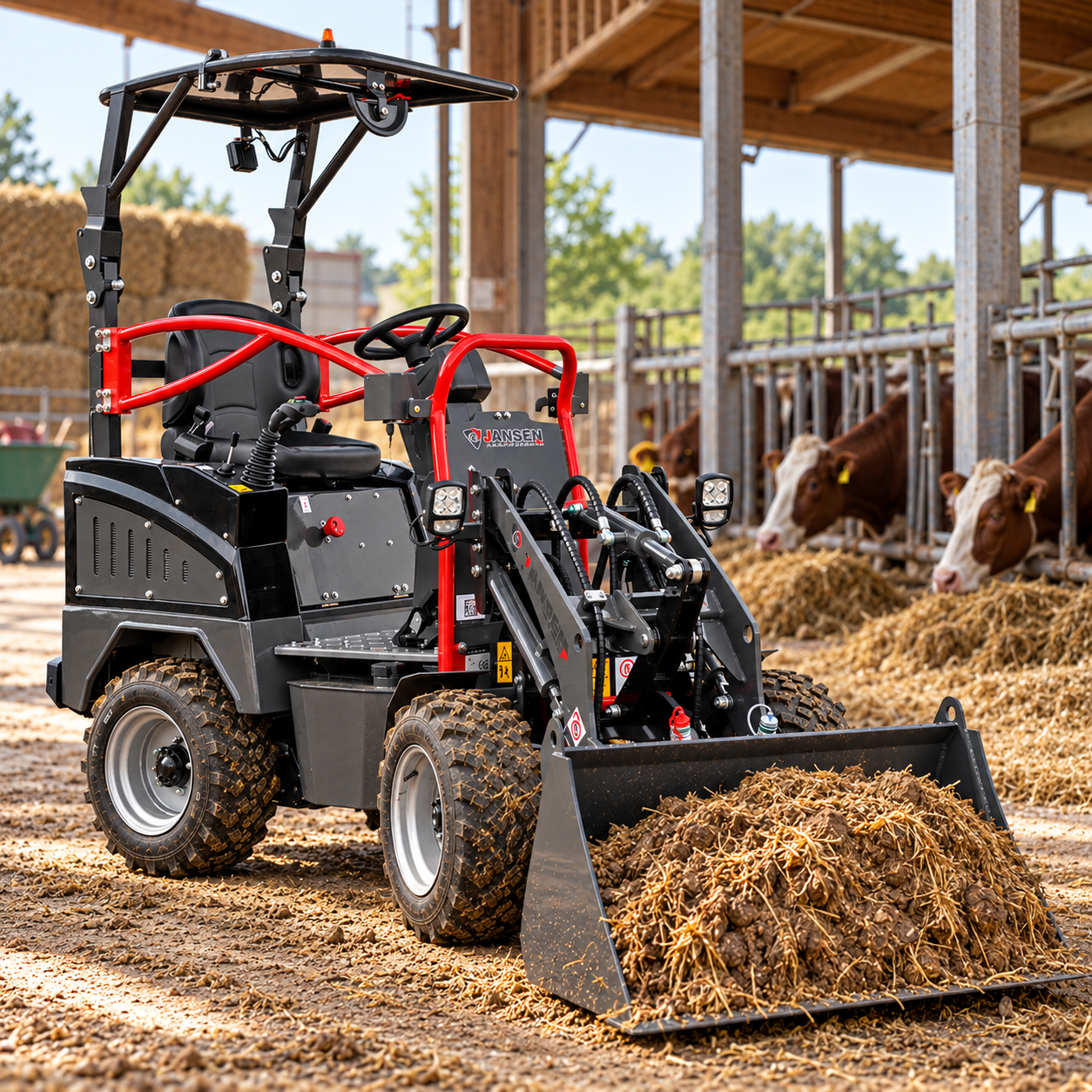

JANSEN® HL-500E Electric Farm Loader – Zero-Emission, Powerful, and Versatile

The JANSEN® HL-500E combines modern electric mobility with high performance and is the ideal solution for work in agriculture, gardening, and landscaping, as well as in horse care, stables, and farmyards. Thanks to its zero-emission electric drive, the farm loader operates exceptionally quietly and can be used without any problems even in enclosed buildings.

With a maximum lifting capacity of 500 kg, standard all-wheel drive, a hydraulic quick-change coupler, and a 100-liter earth shovel included, the HL-500E is perfectly equipped for daily material handling. Its compact dimensions also allow for comfortable operation even in tight spaces.

Quick Overview – Key Benefits

• Zero-emission and low-noise electric drive
• 100-liter earth bucket included as standard
• Lifting capacity up to 500 kg
• All-wheel drive with two powerful electric motors
• Hydraulic quick-change coupler
• Auxiliary hydraulics with a flow rate of approx. 15 l/min
• Floating position as standard
• Ideal for stables, agriculture, and horticulture
• Compact design for tight workspaces
• Up to 6 hours of operating time
• 230-volt charger included

Emissions-free operation—even in enclosed buildings

The powerful electric drive enables virtually silent and completely emissions-free operation. This makes the JANSEN® HL-500E ideal for use in barns, warehouses, or other indoor areas where exhaust fumes are undesirable.

At the same time, you benefit from significantly lower maintenance costs compared to a traditional internal combustion engine.

500 kg lifting capacity for daily material handling

With a maximum lifting capacity of 500 kg, the HL-500E reliably handles a wide range of transport and loading tasks. The standard 100-liter bucket is ideal for loading soil, sand, gravel, feed, manure, or bulk materials.

With a maximum dump height of approx. 1260 mm and a loading height of approx. 1620 mm, trailers or containers can be loaded with ease.

Hydraulic quick-change coupler and auxiliary hydraulics

The standard hydraulic quick-change coupler allows for quick attachment changes directly from the driver’s seat.

In addition, the farm loader features an auxiliary hydraulic system with a flow rate of approx. 15 l/min, enabling the trouble-free operation of numerous optional attachments.

Floating position for optimal ground adaptation

The JANSEN® HL-500E comes standard with a floating position. This enables optimal ground adaptation of attachments such as snow plows or push blades and ensures a clean finish on various surfaces.

Powerful Battery Technology

Equipped with five lead-acid batteries and a total capacity of 750 Ah, the utility loader achieves an operating time of up to 6 hours—depending on operating conditions and workload.

The included 230-volt charger allows for a full charge within approximately 3 to 4 hours.

Optional attachments

Thanks to the quick-change system, the HL-500E’s range of applications can be expanded at any time.

• 4-in-1 bucket
• Grapple bucket
• High-tilt bucket
• Pallet fork
• Bale spear
• Bale grapple
• Snow plow

Technical Specifications

• Model: JANSEN® HL-500E
• 100-liter bucket included
• Lifting capacity: max. 500 kg
• Floating position available
• Drive: All-wheel drive
• Tires: 23 x 8.5 - 12 inches
• Quick-change coupler with hydraulic lock
• Auxiliary hydraulics: approx. 15 l/min
• Max. dumping height: approx. 1260 mm (with earth bucket)
• Loading height: approx. 1620 mm
• Tipping reach: approx. 525 mm
• Gradeability: max. 15°
• Maximum speed: approx. 12 km/h
• Steering angle: max. 35°
• Overall length: approx. 2500 mm
• Overall width: approx. 1080 mm
• Overall height: approx. 2180 mm
• Wheelbase: approx. 1425 mm
• Ground clearance: min. 328 mm
• Weight: approx. 1020 kg
• Battery type: Lead-acid batteries
• Battery capacity: 150 Ah
• Number of batteries: 5
• 230-volt charger included
• Charging time: approx. 3–4 hours
• Operating time: up to 6 hours

Ideal for agriculture, livestock farming, and horticulture

Whether for barn work, transporting materials, feeding, landscaping, or winter maintenance—the JANSEN® HL-500E impresses with its compact design, high maneuverability, and versatile applications.

Thanks to its zero-emission operation, this farm loader is particularly well-suited for daily use in sensitive work areas.

Delivery & Pickup

The JANSEN® HL-500E is delivered ready for use and can only be picked up from the warehouse.

Shipping via a freight carrier is not possible due to the unit’s size and weight.

You are welcome to view and test the farm loader at our showroom by appointment. Our expert staff is, of course, always available to answer any questions you may have.

FAQ – Frequently Asked Questions About the JANSEN® HL-500E

Can the farm loader also be used indoors?

Yes. Thanks to its zero-emission electric drive, the HL-500E is ideal for barns, warehouses, and other indoor areas.

Which bucket is included with the unit?

The farm loader comes standard with a 100-liter earthmoving bucket.

What is the operating time?

Depending on operating conditions, a single battery charge provides up to 6 hours of operating time.

How long does it take to charge?

Using the included 230-volt charger, the charging time is approximately 3 to 4 hours.

What attachments can be used?

Optional attachments include a 4-in-1 bucket, grapple bucket, high-dump bucket, pallet fork, bale spear, bale grapple, and a snow plow.

Does the HL-500E have a float position?

Yes. The standard float position allows for optimal ground adaptation, for example when using a snow plow.

What is the maximum lifting capacity?

The JANSEN® HL-500E achieves a maximum lifting capacity of up to 500 kg.

Conclusion – The compact electric farm loader for versatile applications

The JANSEN® HL-500E combines a powerful electric drive with high lifting capacity, modern hydraulics, and a compact design. Thanks to its zero-emission operation, all-wheel drive, quick-change coupler, and extensive features, this farm loader is ideal for agriculture, livestock farming, horticulture, and municipal work.

If you’re looking for a quiet, economical, and versatile farm loader, the JANSEN® HL-500E is the ideal solution for your professional workday.
