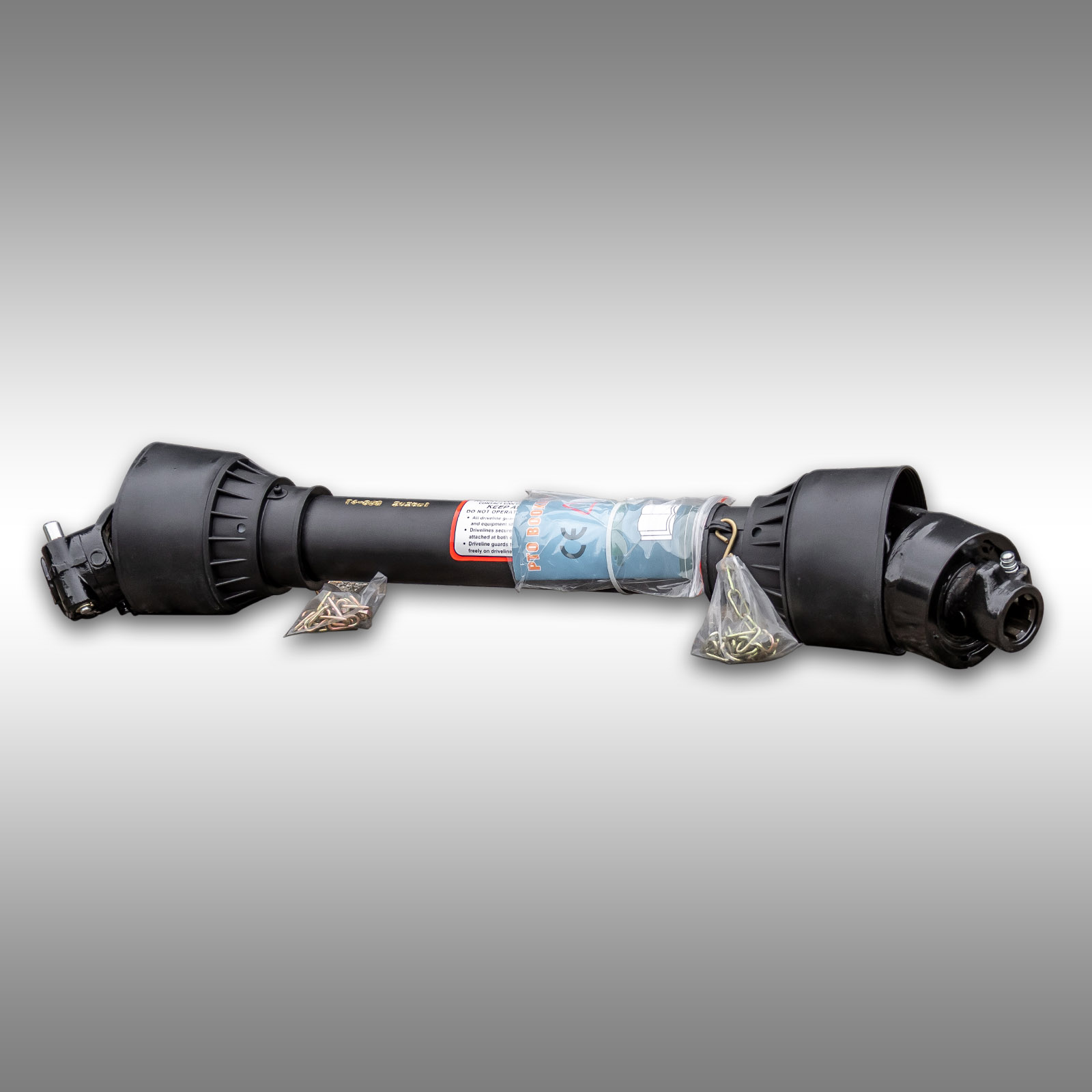

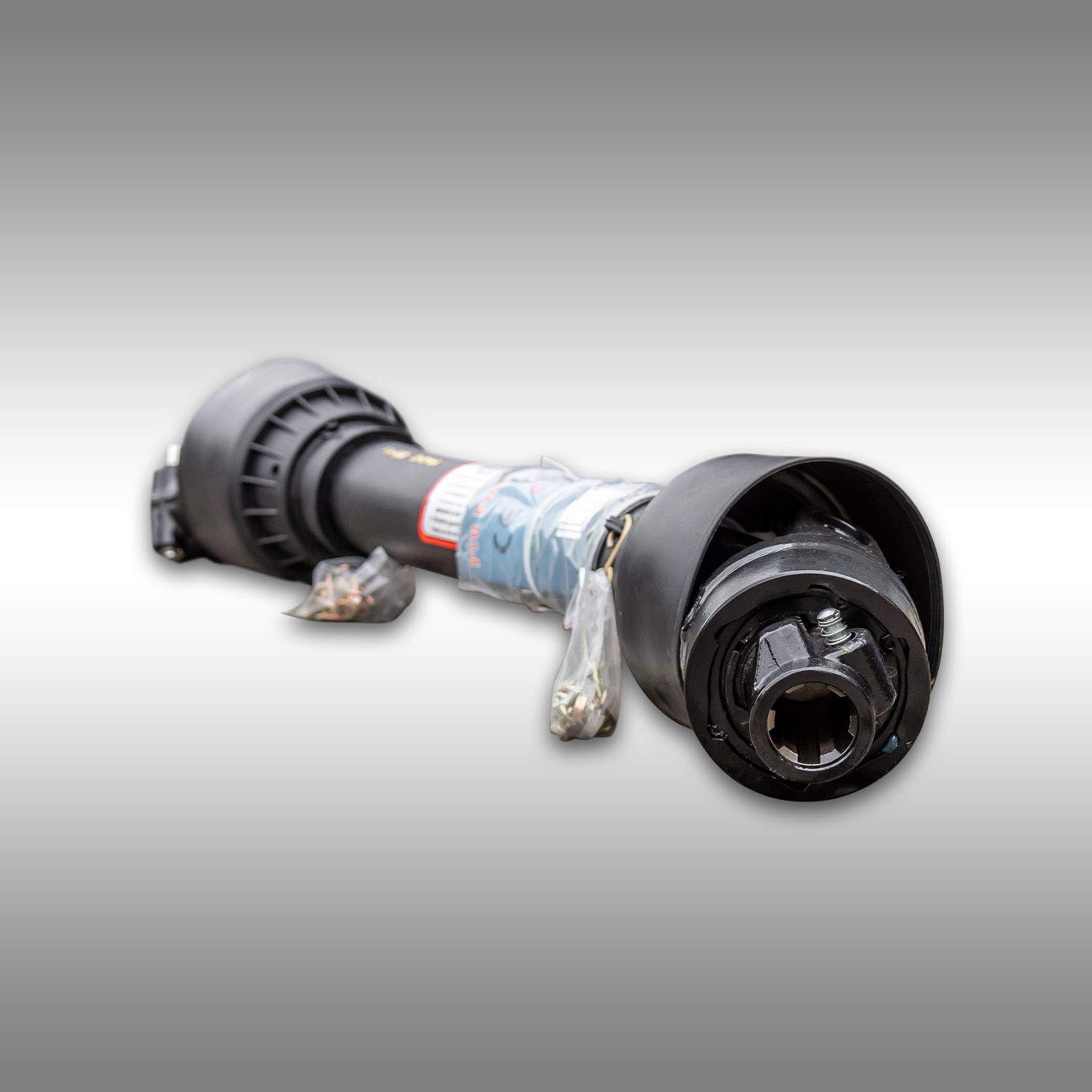

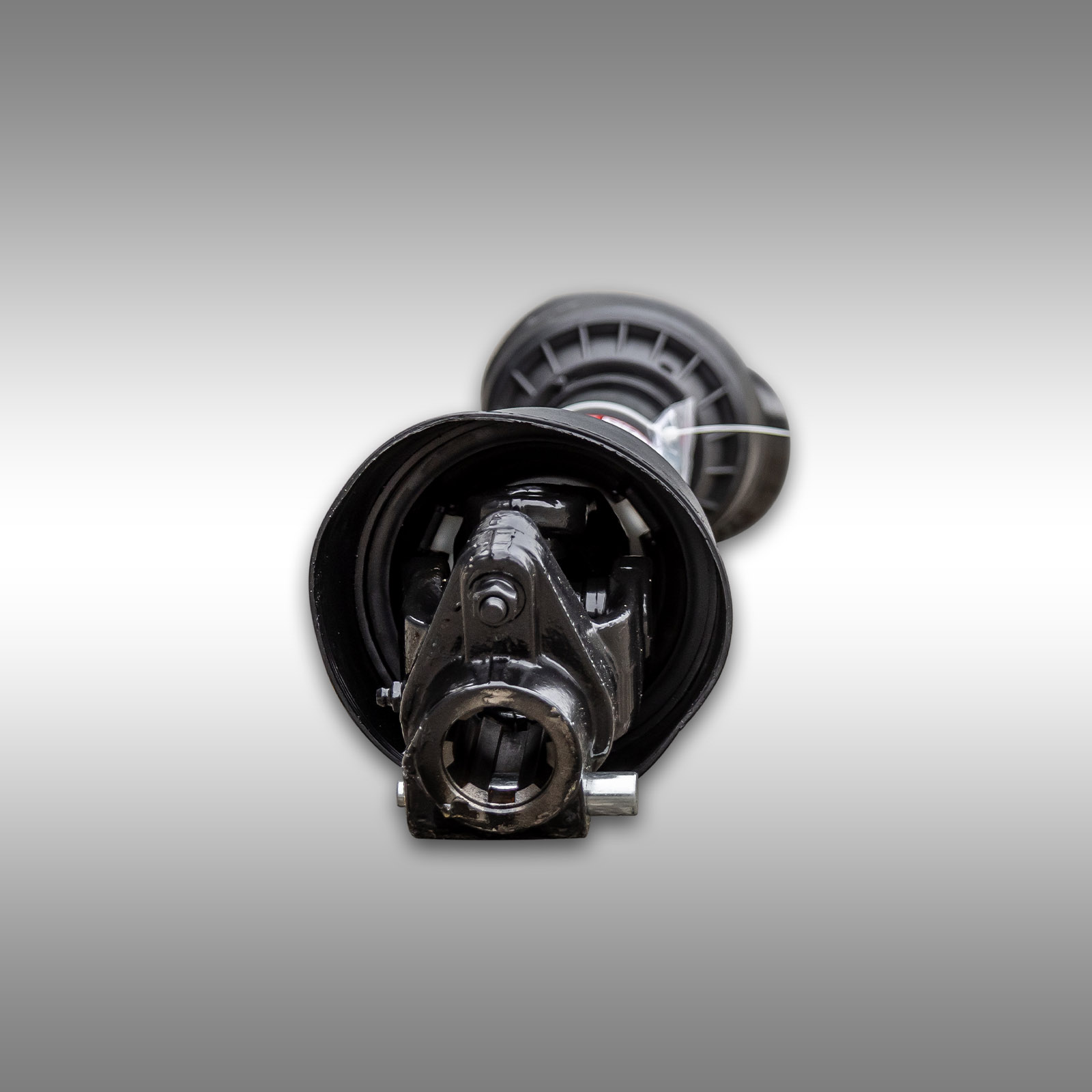

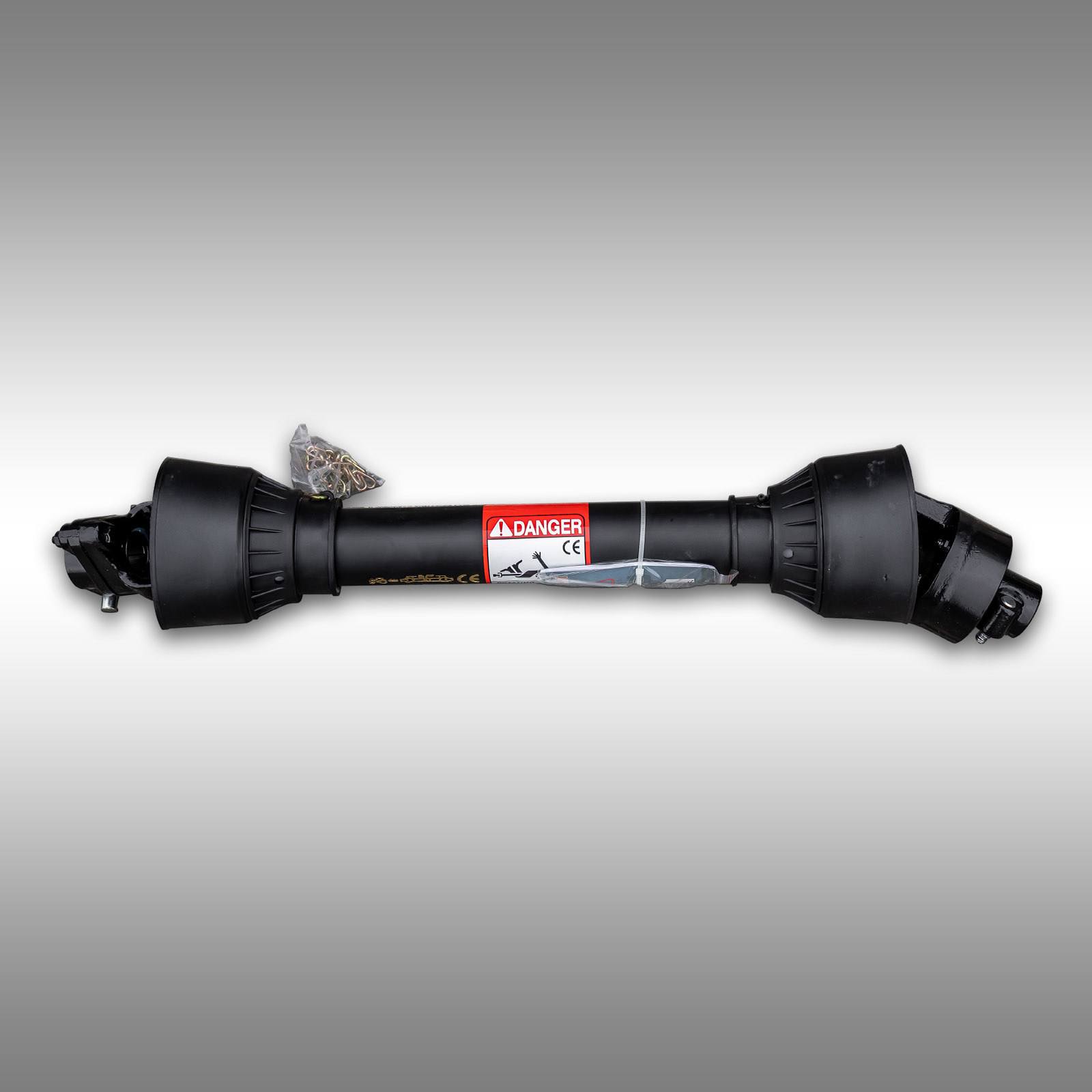

JANSEN® Drive Shaft 08-1000 with Freewheel – for BX & JX Tractor Shredders
The JANSEN® 08-1000 Articulated Drive Shaft with Freewheel is designed for our BX-series tractor shredders starting with the BX-62, as well as for all models in the JX series.
It is particularly recommended for use on tractors with a PTO brake. After the PTO is disengaged, the shredder rotor continues to run due to its flywheel mass. The integrated freewheel decouples the rotor from the already braked PTO, allowing it to coast to a stop.
In addition, the drive shaft features a shear bolt for overload protection.
Key Benefits
Compatible with JANSEN® BX Series starting with the BX-62
Compatible with all JANSEN® JX tractor shredders
Free-wheel with clockwise rotation
Particularly suitable for tractors with PTO brakes
Shear bolt for overload protection
PTO shaft guard and protective chains included
Technical Specifications
Model: Series 8
Freewheel: Clockwise rotation
Profile: Triangular profile
Tractor-side connection: 1 3/8“-6
Machine-side connection: 1 3/8”-6
Cross-shaft spacing: 1000 mm
Power at 540 rpm: max. 66 kW (90 PS)
Torque at 540 rpm: max. 1165 Nm
Max. dynamic torque: approx. 1165 Nm
Overload protection: shear bolt, 2500 ±10% Nm
M10 shear bolt
Scope of Delivery
JANSEN® Drive Shaft 08-1000 with Freewheel and Shear Bolt
