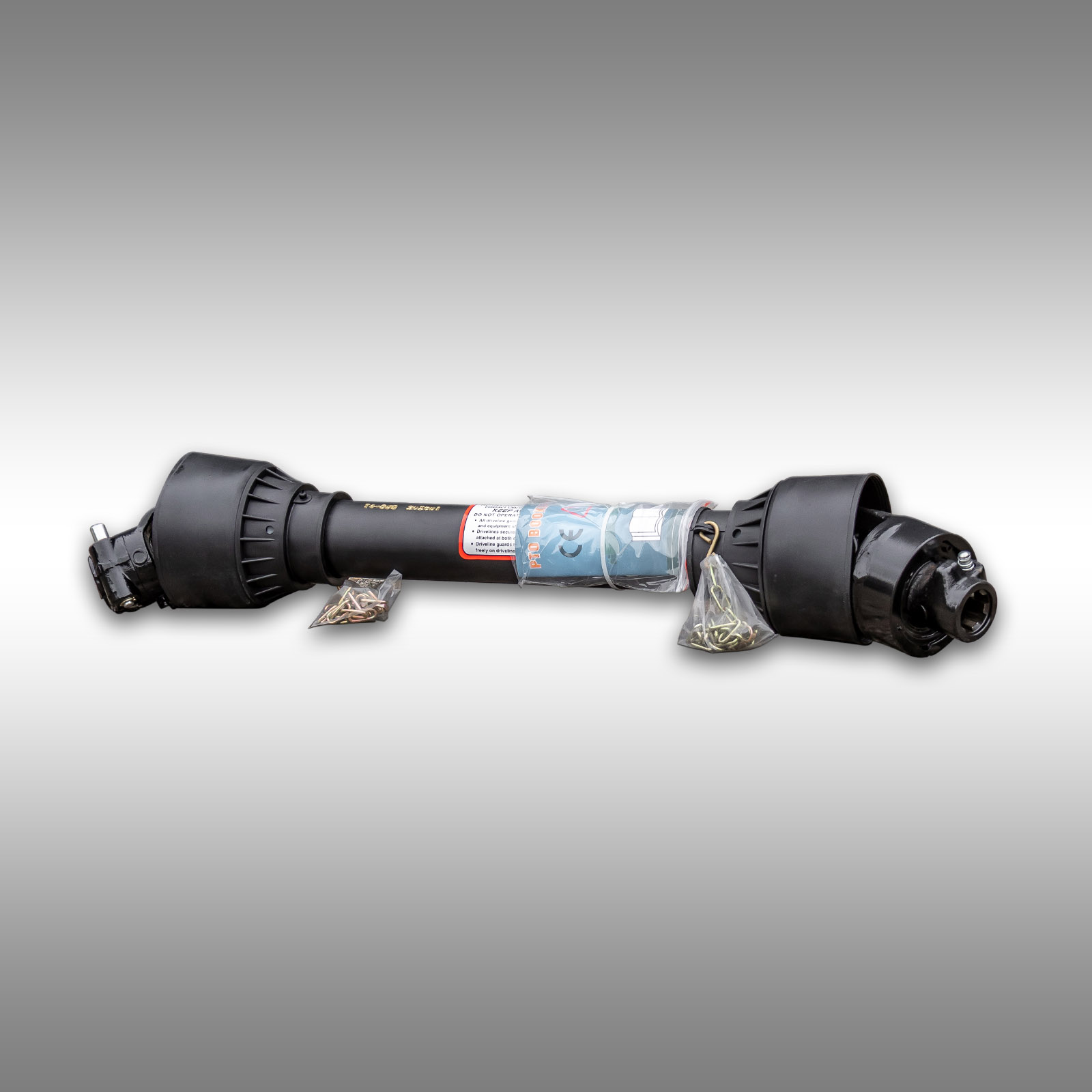

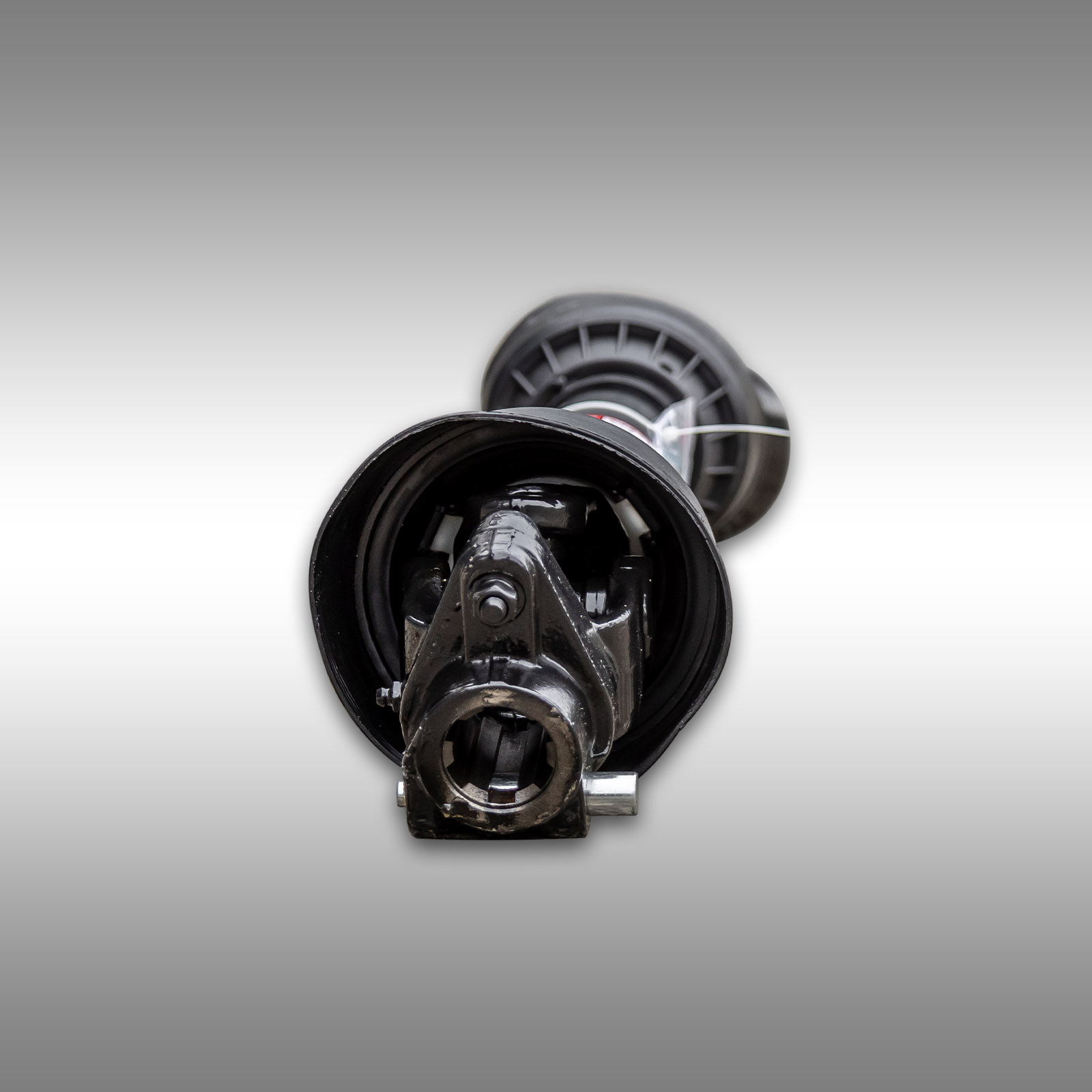

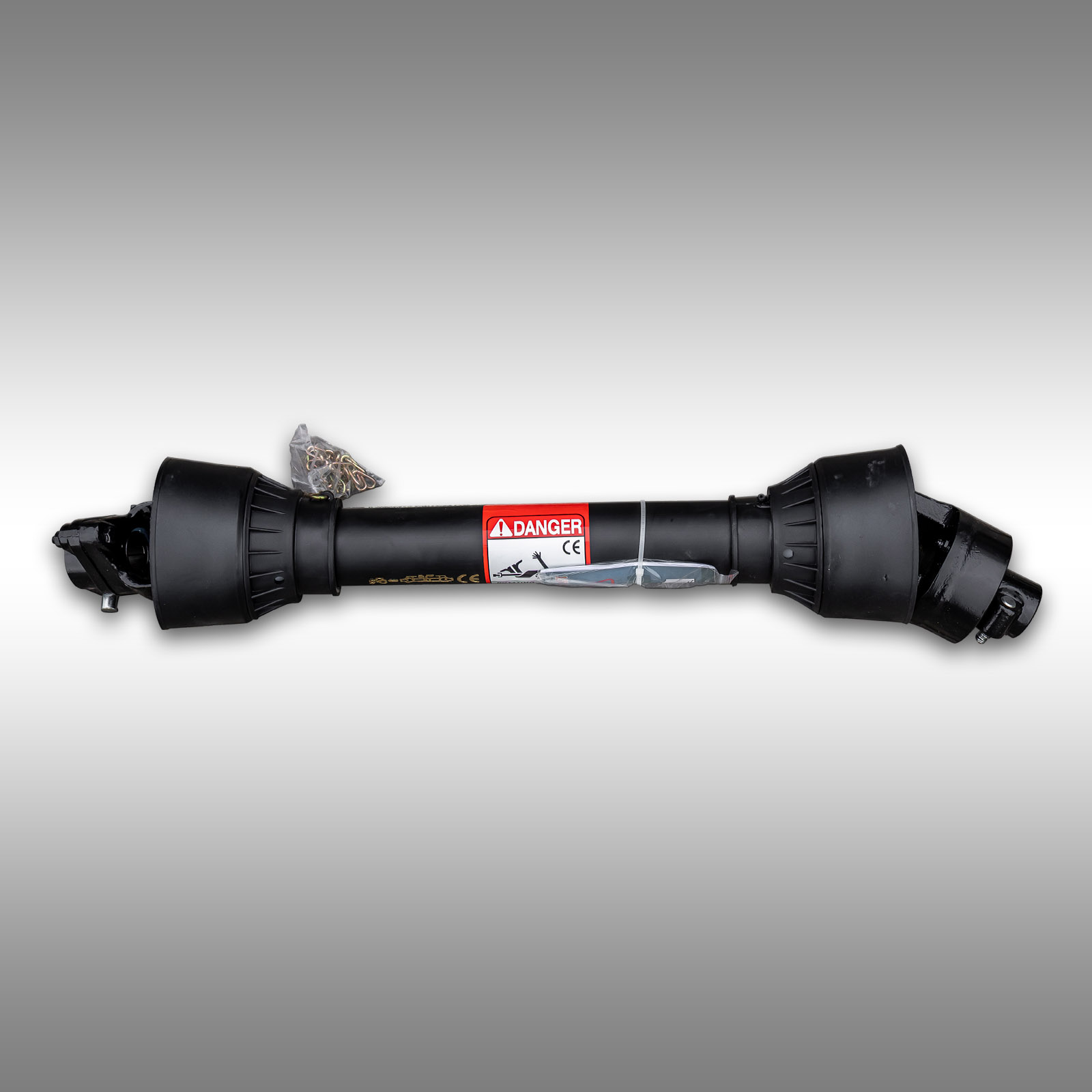

JANSEN® Articulated Shaft 04 with Freewheel – for BX-42 Tractor Shredders

The JANSEN® Articulated Shaft 04 with Freewheel is specifically designed for our BX-42 series tractor shredders.

It is particularly recommended for use on tractors with a PTO brake. After the PTO is shut off, the shredder rotor continues to run due to its flywheel mass. The integrated freewheel disconnects the rotor from the already braked PTO, allowing it to come to a stop on its own.

In addition, the drive shaft features a shear bolt coupling as overload protection.

Key Benefits

• Compatible with JANSEN® BX-42 Series tractor shredders
• Free-wheel with clockwise rotation
• Particularly suitable for tractors with a PTO brake
• Shear pin clutch as overload protection
• PTO shaft guard and protective chains included

Technical Specifications

• Model: Series 4
• Free-wheel: Clockwise rotation
• Profile: Triangular profile
• Tractor-side connection: 1 3/8"-6
• Machine-side connection: 1 3/8"-6
• Cross-shaft spacing: 800 mm
• Power at 540 rpm: max. 26 kW (35 PS)
• Torque at 540 rpm: max. 460 Nm
• Max. dynamic torque: 780 Nm*
• Overload protection: Shear bolt coupling, 1480 ±10% Nm
• M8 shear bolt

Scope of delivery

• JANSEN® PTO Shaft 04 with freewheel and shear bolt coupling
• PTO shaft guard
• Protective chains
