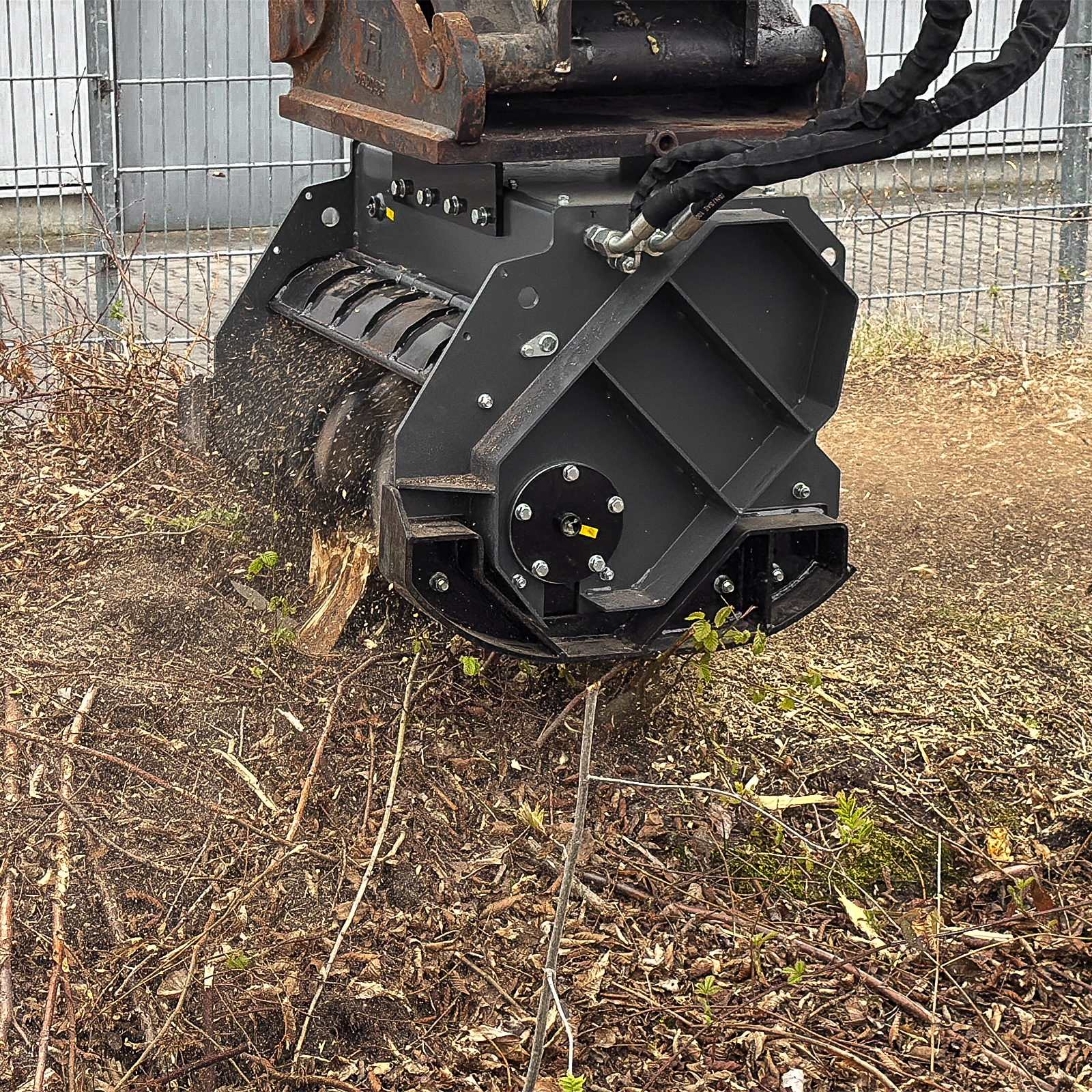

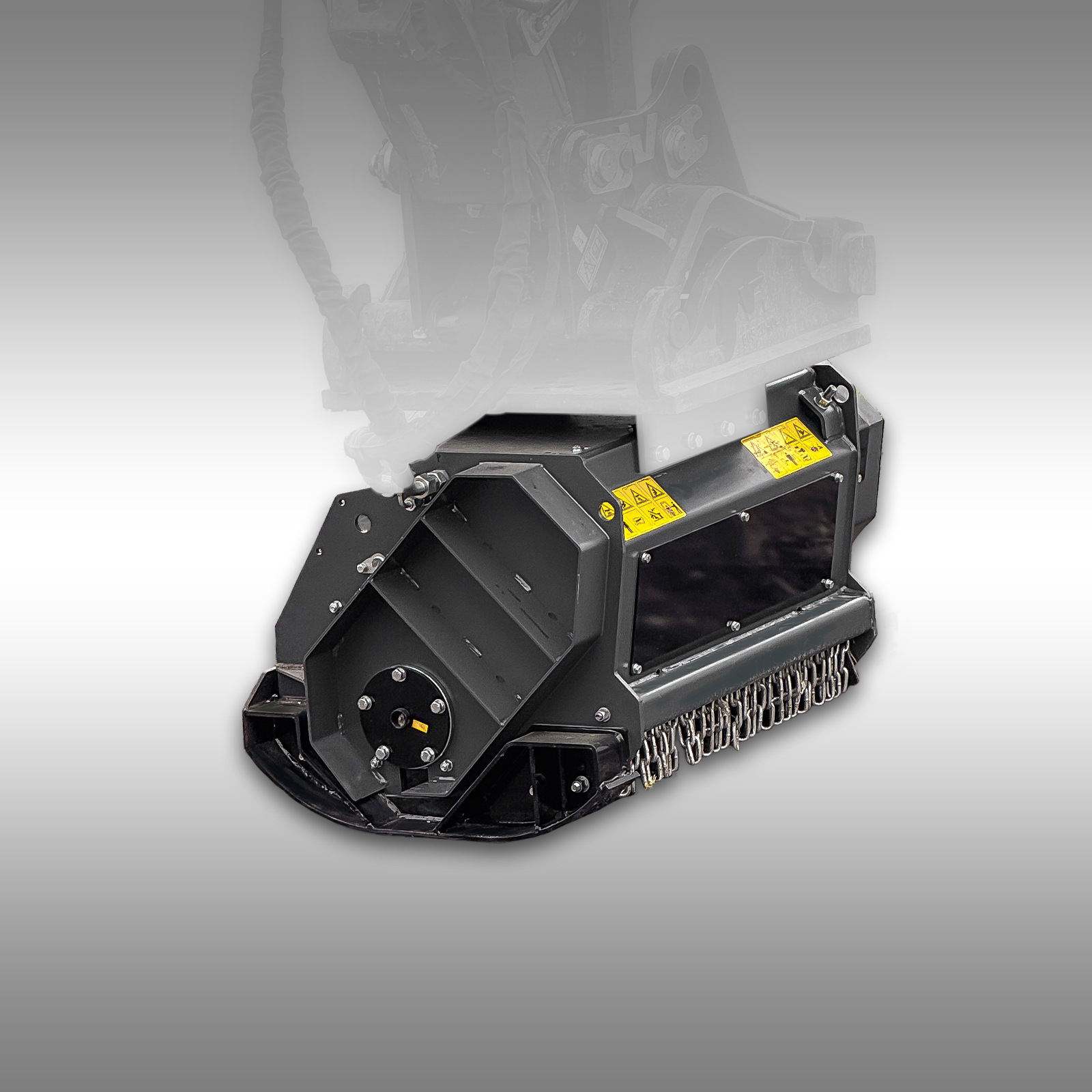

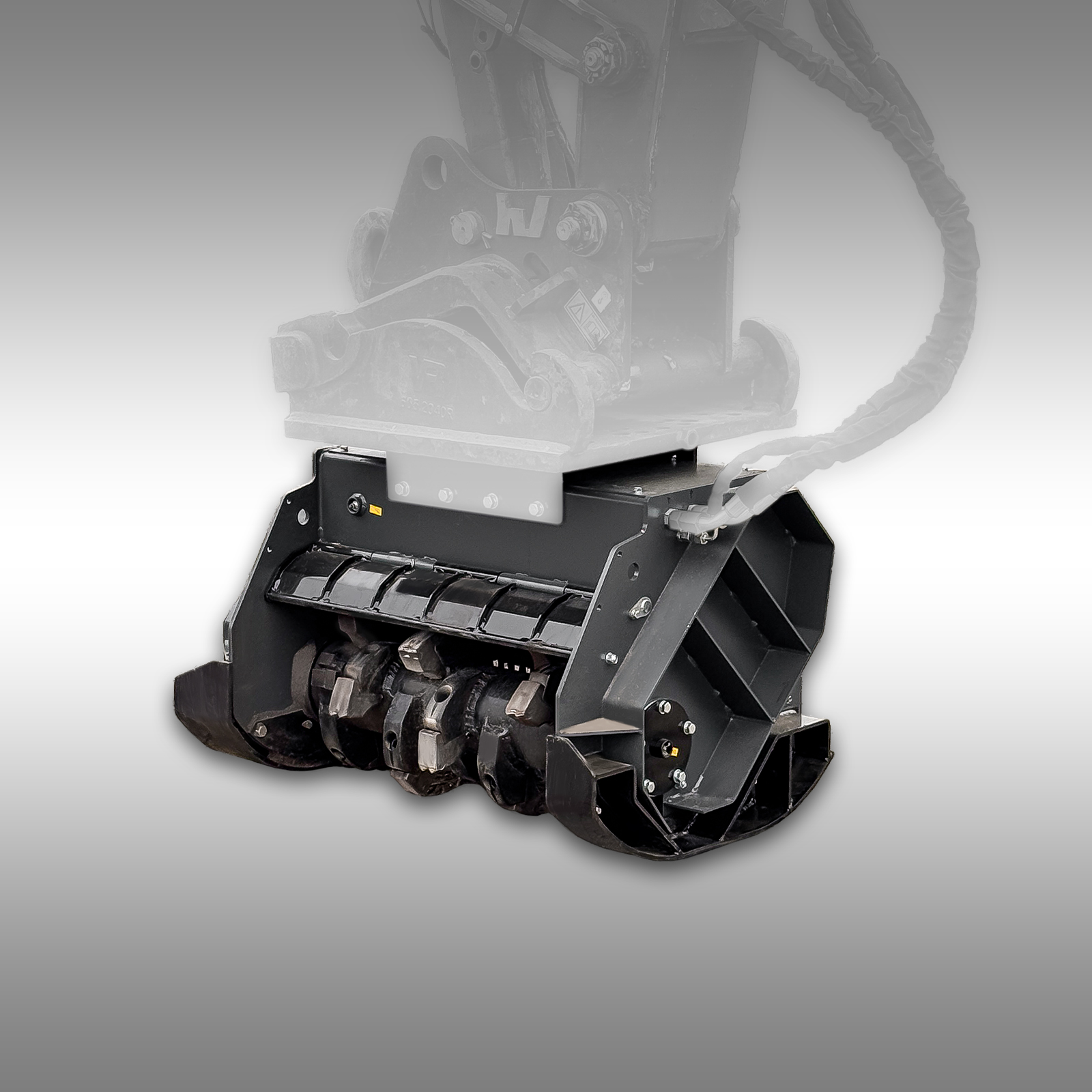

JANSEN® BFM-80 PROLINE – Powerful Excavator Forestry Mulcher for Demanding Applications

The JANSEN® BFM-80 PROLINE excavator forestry mulcher is a robust hydraulic attachment designed for excavators in the 6–8 tonne class. With a working width of 800 mm, 16 carbide-tipped cutting teeth and the ability to process material up to approximately 200 mm in diameter, this forestry mulcher is ideal for demanding applications in forestry, landscape maintenance and land management.

Whether dealing with dense vegetation, undergrowth, branches or woody material, the BFM-80 PROLINE enables efficient shredding directly at the work site. Its compact working width allows precise operation even in areas that are difficult to access.

Its heavy-duty steel construction, V-belt drive and adjustable working depth make this excavator mulching head a versatile solution for forestry businesses, municipalities, landscaping contractors, agricultural operations and demanding private landowners.

Key Benefits of the JANSEN® BFM-80 PROLINE

• For 6–8 tonne excavators: Designed for use with suitable carrier machines in this weight class.
• 800 mm working width: Ideal for targeted mulching operations in overgrown and difficult-to-access areas.
• Material diameter up to approx. 200 mm: Suitable for shredding woody vegetation, branches and undergrowth.
• 16 carbide-tipped cutting teeth: Robust cutting tools for demanding forestry mulching applications.
• Three adjustable working depths: -70 mm, -30 mm or +10 mm for different operating requirements.
• Hydraulic operation: Required hydraulic oil flow of 38–80 l/min with a maximum operating pressure of 250 bar.
• V-belt drive: Mechanical power transmission to the mulching rotor.
• Heavy-duty construction: 8 mm housing thickness and 12 mm thick side plates.
• PROLINE version: Designed for demanding working conditions.

Powerful Shredding of Woody Vegetation and Undergrowth

Maintaining forest areas, embankments and overgrown properties requires reliable shredding of different types of vegetation. The JANSEN® BFM-80 PROLINE is designed to process material with a diameter of up to approximately 200 mm, making it suitable for cutting and shredding undergrowth, branches and thicker woody vegetation.

At the heart of the excavator forestry mulcher is a rotor equipped with 16 carbide-tipped cutting teeth. These are designed to withstand the mechanical demands of shredding woody vegetation. The carbide tips help improve the resistance of the cutting tools under demanding operating conditions.

With a rotor shaft diameter of 219 mm and an overall rotor diameter of 465 mm including the cutting teeth, the mulching head features a robustly dimensioned rotor assembly. Actual working performance depends on factors such as material properties, operating conditions and the hydraulic capacity of the carrier excavator.

800 mm Working Width for Controlled Mulching Operations

The 800 mm working width offers a practical balance between area coverage and precise operation. A compact working width is particularly beneficial when maintaining forest edges, ditches, embankments and irregularly shaped properties.

As a hydraulic excavator attachment, the forestry mulcher can be positioned within the working range of a suitable carrier machine. This makes it possible to reach vegetation in areas that may be difficult to access with conventional mulching equipment.

The BFM-80 PROLINE is therefore suitable for both regular maintenance work and the treatment of heavily overgrown areas.

Three Working Depth Settings for Different Requirements

One of the key features of the JANSEN® BFM-80 PROLINE is its three-position adjustable working depth. Depending on the application, settings of -70 mm, -30 mm and +10 mm are available.

This allows the working depth to be adapted to different vegetation management requirements. The three positions provide additional flexibility, for example when mulching surface vegetation or carrying out work that requires deeper processing.

The appropriate setting depends on the ground conditions, vegetation and intended application. Particular care should be taken to identify potential obstacles and foreign objects when working close to the ground.

Hydraulic Drive for 6–8 Tonne Excavators

The BFM-80 PROLINE has been developed for use with excavators in the 6–8 tonne weight class. The mulching head operates using the hydraulic system of the carrier machine and requires an oil flow rate of 38–80 l/min.

The maximum permissible operating pressure is 250 bar. Three hydraulic connections are required: one pressure supply line, one return line and one separate case drain line.

The case drain line is an essential part of the hydraulic connection and must be taken into account when selecting and preparing the carrier excavator. Before operation, it is important to ensure that the excavator's hydraulic connections and performance specifications meet the requirements of the forestry mulcher.

The excavator's weight class alone is not sufficient to determine compatibility. Hydraulic capacity and the suitability of the individual carrier machine must also be considered.

V-Belt Drive and Robust Rotor Assembly

Power transmission in the JANSEN® BFM-80 PROLINE is provided by a V-belt drive. This drive system mechanically transfers power to the rotor and represents a proven technical solution in mechanical engineering.

Combined with the 219 mm rotor shaft diameter and the 465 mm rotor diameter including cutting teeth, the result is a robustly dimensioned mulching unit designed for demanding vegetation management tasks.

The 16 carbide-tipped cutting teeth are the main working components. Regular inspection of the cutting tools and compliance with the specified maintenance intervals are important for reliable long-term operation.

Heavy-Duty Steel Construction for Demanding Conditions

Forestry mulchers are exposed to considerable mechanical loads during operation. For this reason, the JANSEN® BFM-80 PROLINE features a robust construction with an 8 mm thick housing and 12 mm thick side plates.

These material thicknesses highlight the stability-focused design of the mulching head. A solid machine construction is particularly important when working in dense vegetation and shredding woody material.

With a weight of approximately 450 kg, the BFM-80 PROLINE has a substantial heavy-duty design. When selecting the carrier excavator, the permissible lifting capacity, attachment configuration and stability must therefore be considered in addition to the excavator's weight class.

Versatile Applications in Forestry and Landscape Maintenance

The JANSEN® BFM-80 PROLINE is suitable for a wide range of tasks involving controlled shredding of vegetation and maintenance of overgrown areas. The combination of an excavator and forestry mulcher offers practical advantages, especially in difficult-to-access or unevenly vegetated locations.

Typical applications include:

• Forestry: Maintenance of forest edges, logging trails and overgrown woodland areas.
• Landscaping: Removal and shredding of undergrowth and woody vegetation on properties requiring maintenance.
• Municipal landscape maintenance: Maintenance of embankments, roadside vegetation and overgrown green spaces.
• Agriculture: Cutting back and shredding vegetation along field boundaries and agricultural land.
• Property maintenance: Clearing and maintaining overgrown or neglected areas.
• Path and utility corridor maintenance: Shredding unwanted vegetation along suitable paths and working areas.

Thanks to its compact working width, robust rotor assembly and heavy-duty construction, the BFM-80 PROLINE is a versatile attachment for a wide variety of forestry mulching and vegetation maintenance tasks.

Technical Specifications of the JANSEN® BFM-80 PROLINE

• Manufacturer / Brand: JANSEN®
• Model: BFM-80 PROLINE
• Product type: Excavator forestry mulcher
• Working width: 800 mm
• Suitable excavator weight: 6–8 t
• Maximum material diameter: approx. 200 mm
• Working depth: -70 mm / -30 mm / +10 mm (3 positions)
• Hydraulic connections: 1 × pressure supply, 1 × return, 1 × case drain line
• Required hydraulic oil flow: 38–80 l/min
• Maximum operating pressure: 250 bar
• Drive: V-belt
• Rotor shaft diameter: 219 mm
• Rotor diameter including cutting teeth: 465 mm
• Housing thickness: 8 mm
• Side plate thickness: 12 mm
• Cutting tools: 16 carbide-tipped cutting teeth
• Weight: approx. 450 kg

Important Operating Information

Before commissioning, the suitability of the intended carrier excavator must be checked. In addition to the recommended excavator weight class of 6–8 t, particular attention must be paid to the required hydraulic oil flow of 38–80 l/min, the maximum permissible operating pressure of 250 bar and the necessary case drain line.

The machine's approximate weight of 450 kg must also be considered when assessing the lifting capacity and stability of the excavator.

Information regarding packaging dimensions, scope of delivery, required operating fluids, assembly requirements and the operating manual was not included in the supplied product specifications and should be added before publication where applicable.

JANSEN® – Personal Advice and Service Beyond the Purchase

At Jansen, our commitment extends beyond the machine itself. As a supplier of our own machinery solutions, we place great importance on robust technology, practical equipment and long-term customer support.

Our in-house master workshop provides technical expertise and service for our machinery. This is complemented by long-term spare parts availability and personal telephone support.

Customers who would like to learn more about Jansen and our product range are also welcome to visit our showroom. Our team is happy to provide advice on selecting a suitable excavator forestry mulcher and assessing technical compatibility.

Frequently Asked Questions About the JANSEN® BFM-80 PROLINE

Which excavators are suitable for the JANSEN® BFM-80 PROLINE?

The BFM-80 PROLINE is designed for excavators weighing 6–8 tonnes. The hydraulic system, lifting capacity and attachment configuration of the individual excavator must also be suitable.

What hydraulic capacity does the BFM-80 PROLINE require?

The excavator forestry mulcher requires a hydraulic oil flow of 38–80 l/min. The maximum permissible operating pressure is 250 bar. One pressure supply line, one return line and a separate case drain line are required.

What size branches and woody material can the forestry mulcher process?

The JANSEN® BFM-80 PROLINE is designed to process material with a diameter of up to approximately 200 mm. Actual performance depends on factors including wood type, material characteristics and operating conditions.

Can the working depth of the BFM-80 PROLINE be adjusted?

Yes. The working depth can be adjusted to three positions: -70 mm, -30 mm and +10 mm. This allows the mulching head to be adapted to different vegetation management requirements.

What cutting tools does the JANSEN® BFM-80 PROLINE use?

The excavator forestry mulcher is equipped with 16 carbide-tipped cutting teeth designed for shredding woody vegetation and undergrowth.

Conclusion: Robust Excavator Forestry Mulcher for Versatile Applications

The JANSEN® BFM-80 PROLINE combines a compact 800 mm working width with heavy-duty construction, 16 carbide-tipped cutting teeth and adjustable working depth. With the ability to process material up to approximately 200 mm in diameter, it offers the technical capabilities required for demanding vegetation and woody material management tasks.

For forestry businesses, municipalities, agricultural operations and landscaping contractors, the BFM-80 PROLINE is an attractive solution when a powerful forestry mulcher is required for a suitable excavator in the 6–8 tonne class.

Discover the JANSEN® BFM-80 PROLINE today and contact our team for personal advice on compatibility with your excavator!
