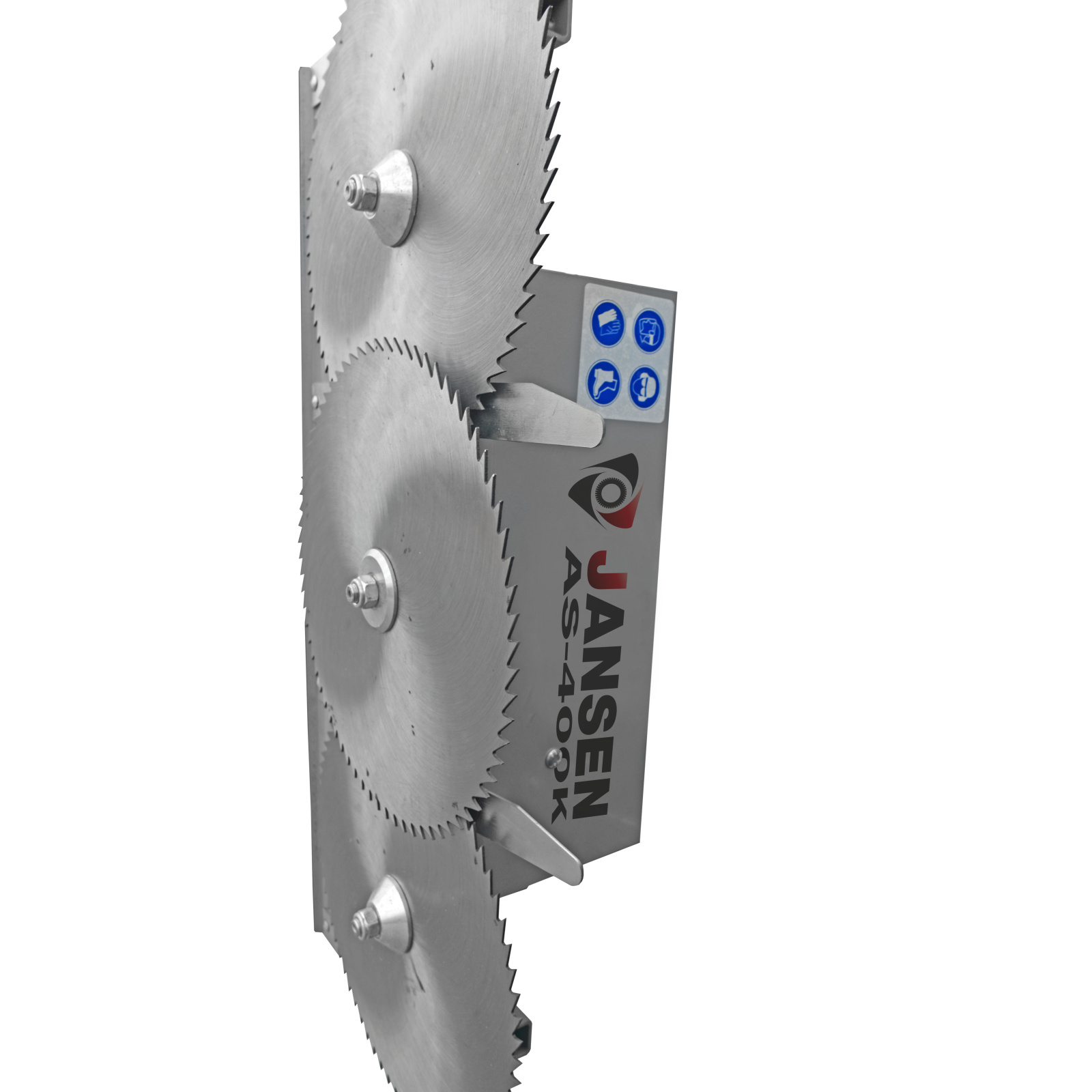

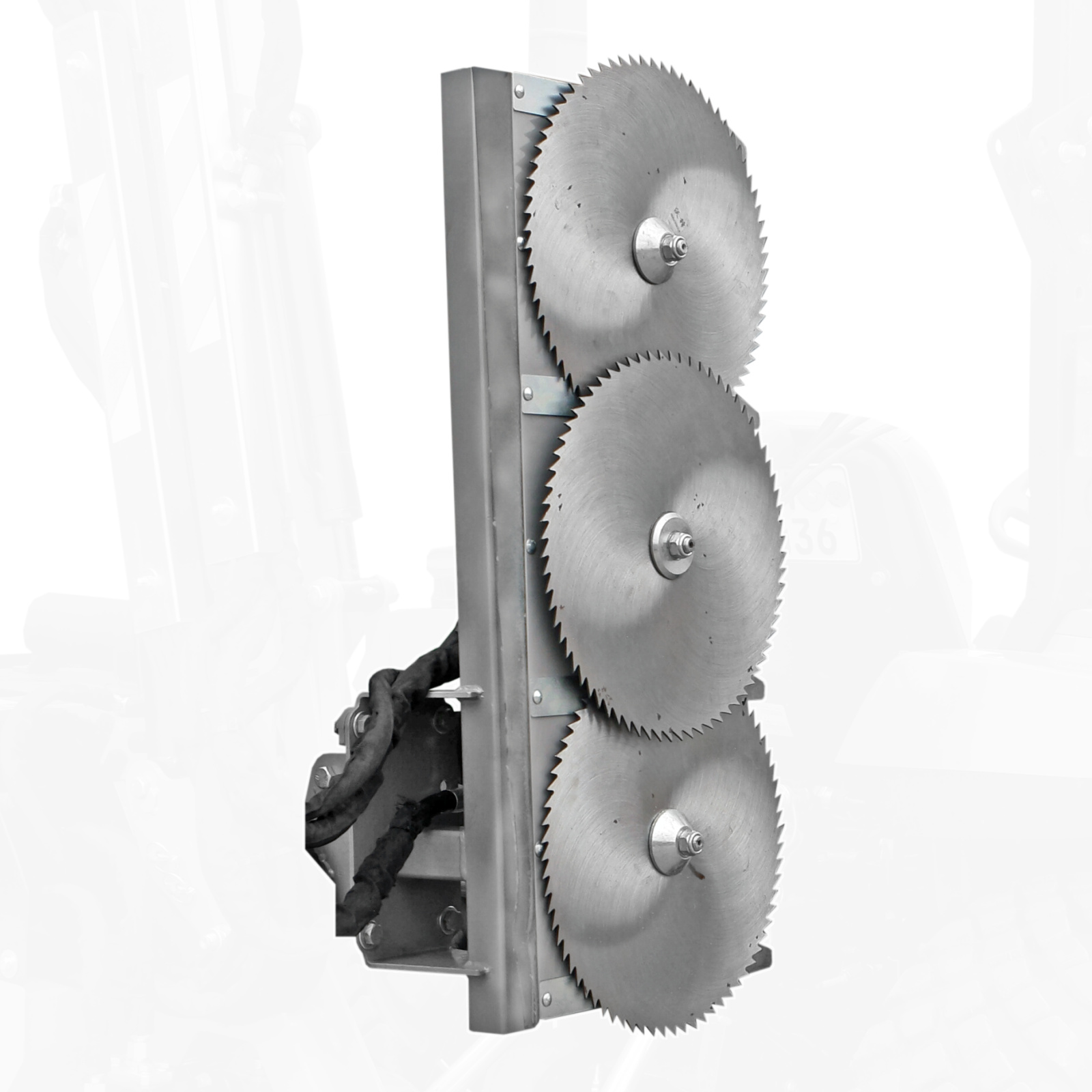

JANSEN® AS-400K – Hydraulic pruning saw with a 900 mm cutting width and 3 saw blades (saw head only)

The JANSEN® AS-400K is a hydraulically driven branch saw for the efficient pruning of trees, shrubs, and woody plants. With three carbide-tipped saw blades, an effective cutting width of approx. 900 mm, and a maximum branch thickness of 80 mm, it is suitable for demanding cutting tasks in landscaping and tree care.

The hydraulic drive and V-belt power transmission ensure smooth operation of the saw blades and a clean cut. This allows branches to be cut quickly and precisely.

Important: This offer includes only the saw head with hydraulic motor. A carrier unit or vehicle-specific mount is not included in this offer.

The key advantages of the JANSEN® AS-400K at a glance

• 900 mm effective cutting width: For efficient pruning of trees, shrubs, and woody plants.
• Branch thickness up to 80 mm: High-performance branch saw for thicker branches.
• 3 carbide-tipped saw blades: Each with a diameter of 400 mm and 72 teeth per blade.
• Hydraulic drive: Suitable for carrier equipment with an appropriate hydraulic supply.
• Smooth operation: Power transmission via V-belts ensures consistent performance.
• Clean cut: Ideal for regular shrub and tree maintenance.
• Versatile applications: Compatible with the JANSEN® HMS-80, HMS-100, and THS-180, among others.
• Compact saw head: Weighing approximately 55 kg.

Powerful branch saw for professional tree and shrub care

Whether pruning trees, maintaining hedges, or clearing brush: The JANSEN® AS-400K ensures a fast and smooth workflow.

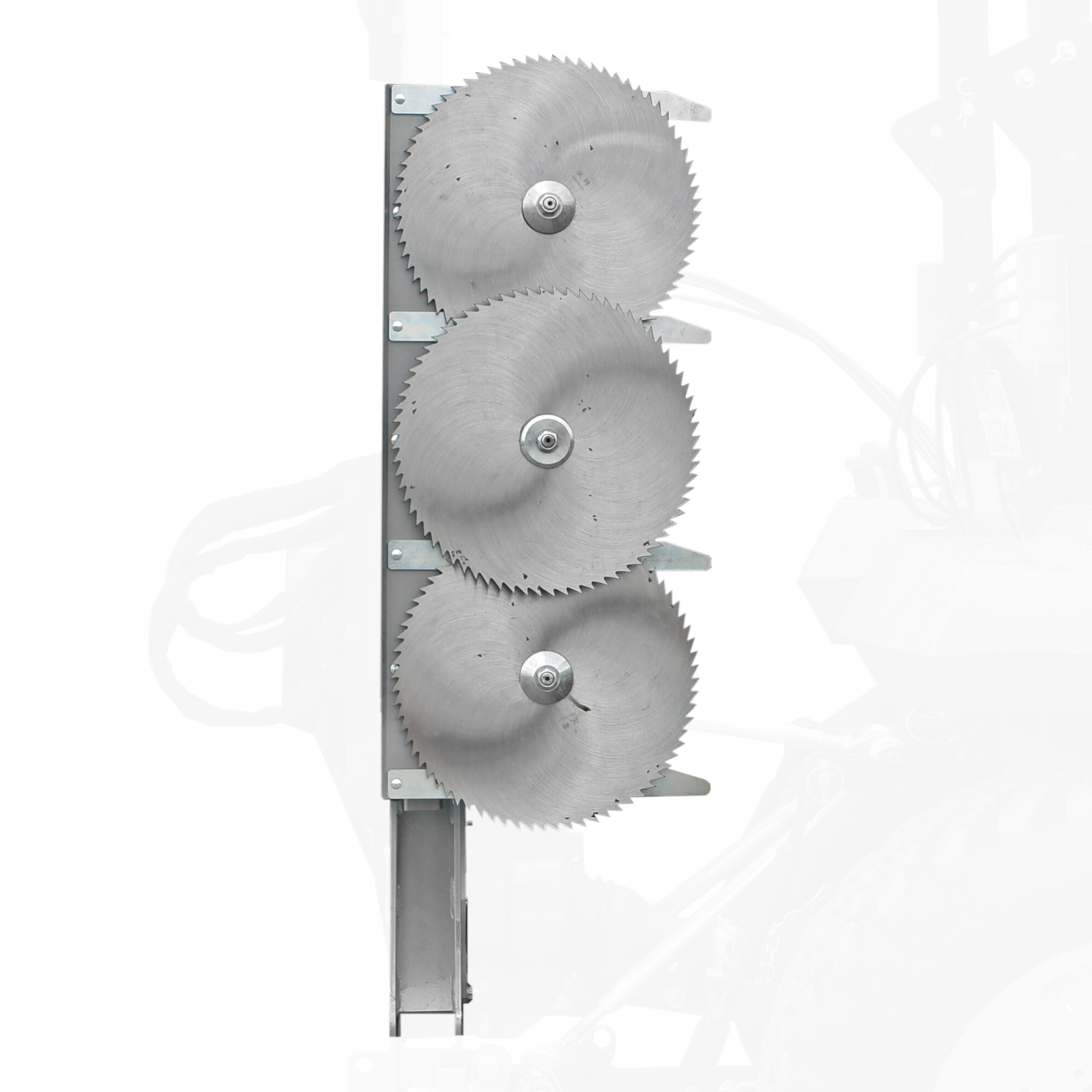

The three saw blades provide an effective cutting width of approximately 900 mm. Each blade has a diameter of 400 mm, is carbide-tipped, and features 72 teeth.

Thanks to its hydraulic drive system and V-belt power transmission, this branch saw is characterized by smooth operation and a clean cut.

Important application note: Thick branches must always be cut from top to bottom to prevent the saw blades from jamming.

Hydraulic Drive and Technical Requirements

The JANSEN® AS-400K is hydraulically driven. Operation requires a hydraulic oil flow rate of at least 40 l/min. The maximum operating pressure is 160 bar.

The carrier vehicle must be equipped with a double-acting hydraulic control unit and a drain line.

Depending on operating conditions and requirements, an operating speed of approximately 2 to 7 km/h is recommended.

Compatibility with JANSEN® carrier vehicles

The saw head is compatible with the following JANSEN® machines, among others:

• JANSEN® HMS-80 – hydraulic rear mulcher
• JANSEN® HMS-100 – hydraulic rear mulcher
• JANSEN® THS-180 – tractor hedge trimmer for front loaders

If you wish to use the branch saw on a different carrier vehicle, you must organize or fabricate a suitable mounting bracket on your own. Before use, check the hydraulic requirements and mechanical compatibility.

Hole spacing and mounting dimensions of the saw head

The mounting dimensions of the saw head are particularly important for designing a suitable mounting bracket. The following original diagram of the JANSEN® AS-400K shows the hole spacing and diagonal dimensions of the mounting plate.

The drawing contains the following dimensions:

• Horizontal hole spacing: 120 mm
• Vertical hole spacing between the upper and middle holes: 70 mm
• Vertical hole spacing between the middle and lower holes: 140 mm
• Diagonal dimension: 185 mm
• Diagonal dimension: 240 mm

Note: When manufacturing or modifying a mounting bracket, be sure to follow the shown arrangement of the holes. The diagonal dimensions refer to different pairs of holes, as indicated in the original drawing.

Technical Specifications for the JANSEN® AS-400K

• Model: JANSEN® AS-400K
• Part Number: 1776001
• Equipment Type: Hydraulic branch saw (saw head only)
• Number of Saw Blades: 3, carbide-tipped
• Saw Blade Diameter: 400 mm
• Blade thickness: 4 mm
• Saw teeth: 72 per blade
• Effective cutting width: 900 mm
• Maximum branch thickness: 80 mm
• Drive: Hydraulic
• Power transmission to the saw blades: V-belt
• Required hydraulic oil flow rate: At least 40 l/min
• Maximum operating pressure: 160 bar
• Required hydraulic connection: 1 × double-acting + drain line
• Recommended operating speed: 2–7 km/h
• Dimensions when assembled (L × W × H): 1010 × 460 × 330 mm
• Net weight: Approx. 55 kg
• Packaging dimensions (L × W × H): 108 × 54 × 46 cm
• Weight with packaging: Approx. 64 kg

Scope of Delivery

The offer includes the JANSEN® AS-400K saw head, including hydraulic motor.

Not included: carrier vehicle and vehicle-specific mounting bracket. If the saw head is to be used on a customer’s own carrier vehicle, a suitable mounting bracket must be provided by the customer.

Delivery & Commissioning

The JANSEN® AS-400K is delivered well-packaged and disassembled in a wooden crate.

You should plan on about one hour for final assembly. Assembly is relatively simple and can be performed even by individuals without specialized assembly experience.

Before commissioning, ensure that the unit is properly secured to the carrier vehicle and that the necessary hydraulic connections are in place. In particular, take into account the required oil flow rate, the permissible operating pressure, the double-acting control unit, and the oil drain line.

If you have any questions about installation or operation, the JANSEN® team is here to assist you.

JANSEN® – Technical Expertise, Workshop Service, and Spare Parts Supply

In addition to equipment technology, JANSEN® offers personalized consultation, its own master workshop, and a comprehensive spare parts supply.

Many machines can be viewed and tested in the showroom by prior appointment. This gives you the opportunity to get a feel for the technology and its applications before making a purchase.

Frequently Asked Questions (FAQ) about the JANSEN® AS-400K

1. What kind of branches can the JANSEN® AS-400K cut?

The hydraulic branch saw is designed for branches with a diameter of up to 80 mm. It is suitable for pruning trees, shrubs, and other woody plants. Thicker branches should always be cut from top to bottom to prevent the saw blades from jamming.

2. What hydraulic power does the branch saw require?

Operation requires a hydraulic oil flow rate of at least 40 l/min. The maximum operating pressure is 160 bar. A double-acting hydraulic control unit and a leak oil line are also required.

3. Is the JANSEN® AS-400K compatible with my tractor?

The saw head is compatible with, among others, the JANSEN® HMS-80 and HMS-100, as well as the JANSEN® THS-180. Use on other carrier vehicles generally depends on a suitable mounting and the necessary hydraulic specifications. If necessary, a suitable mounting must be sourced or fabricated by the user.

4. What are the mounting dimensions of the saw head?

According to the original drawing, the mounting plate has a horizontal hole spacing of 120 mm. Other shown spacings are 70 mm and 140 mm in the vertical direction, as well as 185 mm and 240 mm diagonally. The exact arrangement of the holes is shown in the hole dimension diagram embedded above.

5. Is the JANSEN® AS-400K delivered fully assembled?

No. The branch saw is shipped disassembled and well-protected in a wooden crate. Allow approximately 60 minutes for final assembly. The scope of delivery includes the saw head with hydraulic motor, but does not include a carrier vehicle or a vehicle-specific mounting bracket.
