JANSEN® AG-220 Front & Rear Flail Mower with Hydraulic Side Shift – The Mower for the Most Demanding Applications

The JANSEN® AG-220 is a particularly powerful and extremely robust front and rear flail mower for use in agriculture, lawn care, orchards, and municipal applications. With a generous working width of approx. 217 cm, hydraulic side shift, and heavy-duty construction, this mulcher is ideal for large areas and demanding mowing tasks.

Thanks to its dual-mounting capability, the AG-220 can be used in both front and rear mounting configurations. The specially reinforced angle gearbox with 1,000 rpm also makes it ideal for operation on the front PTOs of modern tractors.

Quick Overview – Key Benefits

• Hydraulic side shift for maximum flexibility
• Front and rear mounting possible
• Robust construction for heavy-duty applications
• Reinforced 1,000 rpm angle gearbox
• 24 hardened hammer flails, approx. 1.2 kg each
• Double spiral rotor for smooth operation and reduced wear
• Heavy-duty trailing roller for a clean cut
• Freewheel transmission as standard
• Height-adjustable skids
• Galvanized protective slats against stone impact
• Ideal for tall grass, fallow fields, and straw-like cuttings

Hydraulic side shift for maximum working width

The integrated hydraulic side shift allows for flexible adjustment of the working area directly from the tractor. This makes it much easier to work around edges, ditches, fences, or obstacles.

To use the side shift, all that is required is a double-acting control unit on the tractor. Especially for professional maintenance work, this feature ensures significantly greater efficiency and time savings.

Robust construction for heavy-duty applications

The AG-220 is one of the heaviest machines in its class. Its robust construction, featuring wall thicknesses of up to 12 mm, ensures exceptional stability and a long service life—even with intensive use on agricultural, municipal, or commercial land.

The combination of a heavy flail shaft, a large trailing roller, and a sturdy frame enables low-vibration operation and excellent mulching results even with dense vegetation.

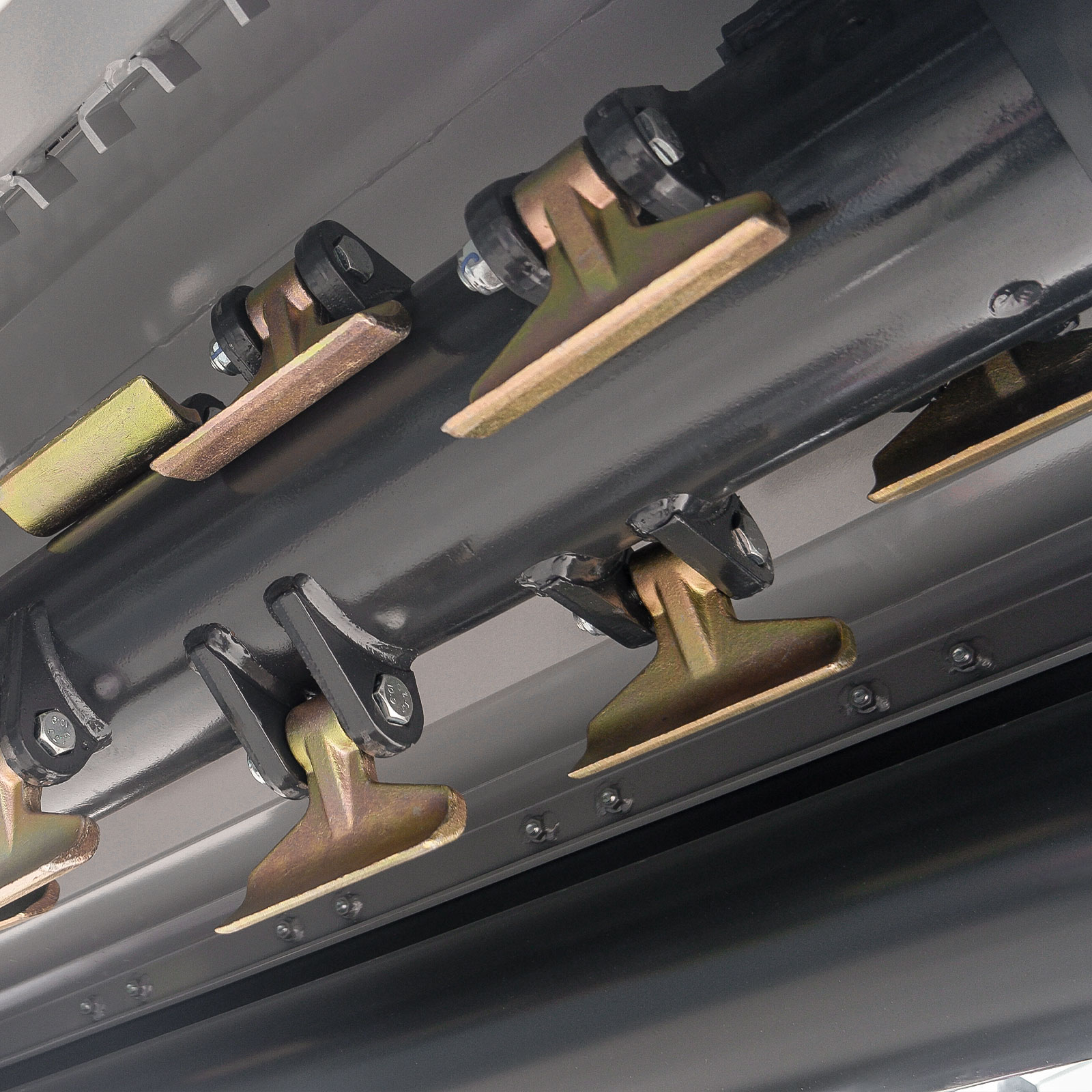

24 hardened hammer flails for perfect mulching results

The total of 24 specially hardened hammer blades, each weighing approx. 1.2 kg, generate an enormous flywheel mass and reliably reduce the cut material to a minimum.

Even tall grass, matted vegetation, fallow land, or straw-like material are processed cleanly and evenly.

Double-spiral rotor – smooth operation and lower power requirements

A special feature of the JANSEN® AG-220 is the built-in double-spiral rotor. The even distribution of the hammer blades optimizes the load on the rotor shaft.

The result:

• smoother operation
• less vibration
• less wear
• reduced power requirements
• longer component service life

This advantage is particularly noticeable during long work cycles.

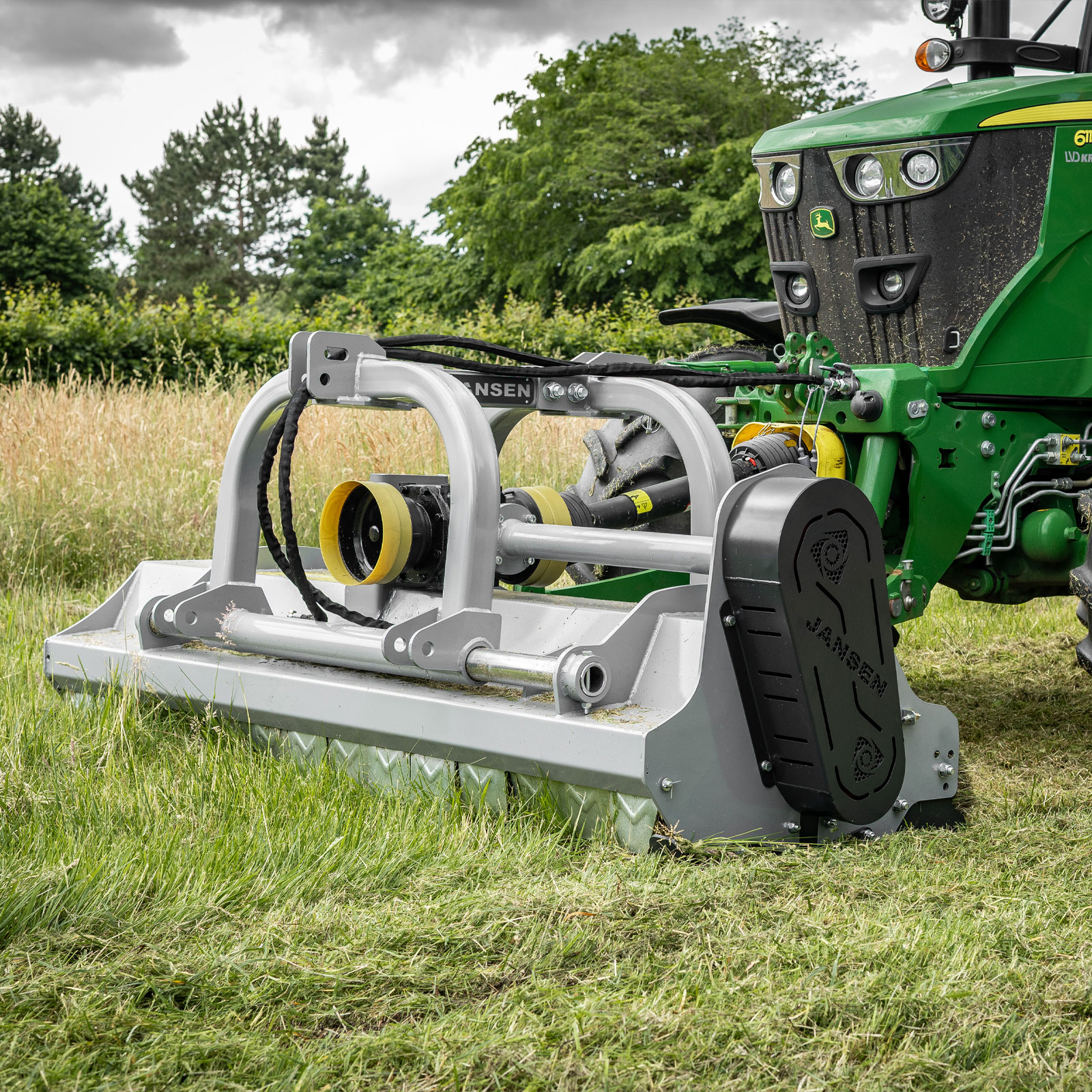

Suitable for front and rear mounting

The AG-220 was specially developed for universal use and can be mounted both at the front and rear of the tractor.

The three-point hitch is designed for Category I and Category II. For front mounting, Category II is used.

Thanks to the powerful 1,000 rpm gearbox, the mulcher is ideally suited for modern tractors with a front PTO.

Standard Equipment

• Hydraulic side shift
• Heavy-duty trailing roller
• Freewheel transmission
• Height-adjustable skids
• Galvanized protective slats against stone impact
• 5-speed timing belt drive
• PTO shaft included

Technical Specifications

• Model: JANSEN® AG-220
• Overall width: 2380 mm
• Cutting width: approx. 2170 mm
• Tractor power: min. 55 hp
• Mounting: Three-point Cat. I & II (front mounting Cat. II)
• PTO speed: 1,000 rpm
• Hydraulic side shift
• Number of flails: 24
• Weight of flails: approx. 1.2 kg each
• Wall thickness: 8–12 mm (inner plates 5 mm)
• Beater shaft Ø: 168 mm
• Rear roller Ø: 168 mm
• Drive: 5 V-belts
• Weight: approx. 656 kg
• PTO: included in delivery
• Packaging dimensions: approx. 243 x 103 x 110 cm (L x W x H)
• Shipping weight: approx. 786 kg

Ideal for demanding mulching tasks

Whether for meadow maintenance, fallow land, municipal green spaces, orchards, or agricultural fields—the JANSEN® AG-220 impresses with high area coverage, robust technology, and maximum flexibility.

Thanks to its hydraulic side shift, heavy-duty construction, and high-quality components, this mulcher is the perfect choice for users who refuse to compromise.

Delivery & Assembly

The mulcher is delivered pre-assembled in a sturdy wooden crate. Allow approximately 2–3 hours for final assembly. A German operating manual and an exploded view diagram are, of course, included.

Before initial use, the transmission must be filled with approximately 2 liters of transmission oil meeting the 80W90 specification.

FAQ – Frequently Asked Questions about the JANSEN® AG-220 Flail Mower

For which tractors is the AG-220 suitable?

The JANSEN® AG-220 is designed for tractors with an engine power of at least 55 hp. For demanding mulching work, we recommend sufficient power reserves.

Can the mulcher be mounted on the front or rear?

Yes. The AG-220 can be used for both front and rear mounting. For rear mounting, the hitch is suitable for Cat. I and Cat. II; for front mounting, only Cat. II.

What PTO speed is required?

The mulcher is designed for a PTO speed of 1,000 rpm.

What is the hydraulic side shift used for?

With the hydraulic side shift, the mulcher can be easily moved sideways from the driver’s seat. This makes it easier to work along fences, paths, ditches, embankments, or obstacles.

What materials can the AG-220 mulch?

The mulcher is suitable for tall grass, meadows, fallow land, straw-like cuttings, matted vegetation, and light brush.

How many hammer flails are installed?

The AG-220 features 24 hardened hammer blades with an individual weight of approx. 1.2 kg.

Is the PTO shaft included in the scope of delivery?

Yes. The appropriate PTO shaft is included in the scope of delivery.

Does oil need to be added before initial operation?

Yes. The transmission must be filled with approximately 2.1 liters of transmission oil meeting the 80W90 specification before initial operation.

Important note regarding delivery

Note: Since the shipping company is unable to unload the item due to its size, the customer must arrange for a forklift or similar suitable lifting equipment.

Conclusion – Flail mower for the highest demands

The JANSEN® AG-220 combines tremendous stability, high mulching performance, and maximum flexibility in a single machine. With hydraulic side shift, a heavy-duty double-spiral rotor, and a reinforced 1,000 rpm gearbox, this front and rear mulcher is the ideal solution for users in agriculture, municipal services, and landscape maintenance.
